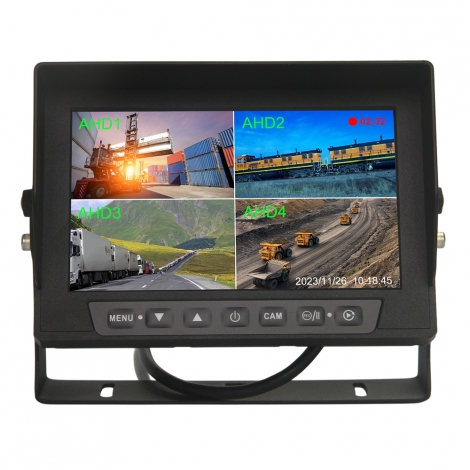

7″ AHD Quad Input Dash Monitor
Name:7″ AHD Quad Input Dash Monitor
Model No.:FA-712QAHD
Screen Size:7″ AHD Quad Input Dash Monitor
Aspect Ratio:16:9
Resolution:1024xR.G.Bx600
Video Input:4 Way Input
Speaker:Built-in
System:PAL& NTSC(auto)
Remote Control:Yes
Power Supply:Input Power: DC12V-36V, Output Power: DC12V
Bracket:U Shape Braket
Dimension:180x121x24.2mm
Warranty:1 Year

Key Features:


DC12-36V 7″ AHD Quad Input Dash Monitor

FA-712AQHD Features:

The 7″ AHD Quad Input Dash Monitor with removable sunshade

Mounts to the dashboard with ease

Support 4 camera inputs, and display 1 to 4 cameras simultaneously

This monitor has audio functionality

Power Operation Voltage: DC12-24 volts

Suitable for 4WDs, Motorhomes, Horse Trailers, Trucks, Buses & Heavy Machinery etc.


Car Monitor (FA-712QAHD)
Color LCD screen7-inch IPS screen, with removable sunshade
Resolution1024xRGBx600
Aspect ratio16:9 Wide Screen
Brightness(cd/m2)500cd/m2
Video input4-way video input, Video Compatibility: CVBS/ AHD

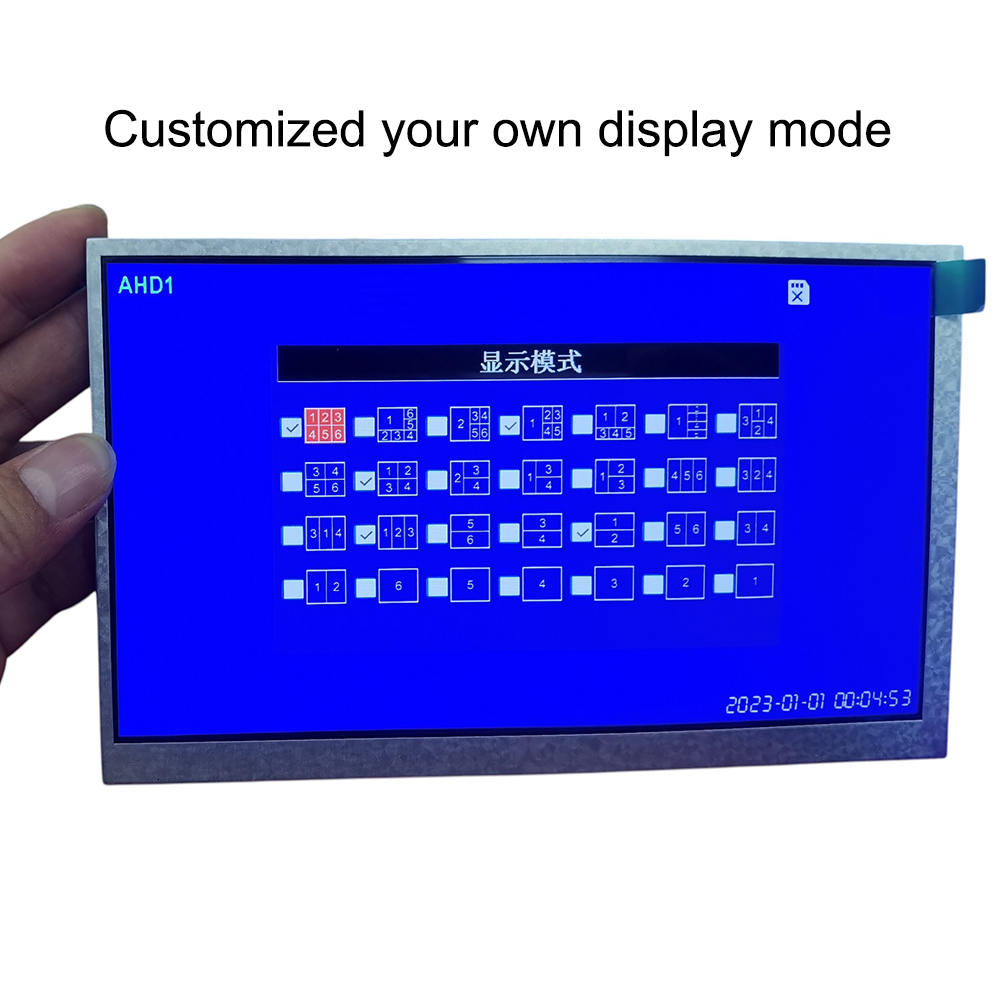

Picture modeThe monitor can be set in four kinds of view modes: single, dual, triple, or quad.
Trigger4 ways Trigger function, Trigger priority: CH2>CH1>CH3>CH4
Color systemPAL/NTSC (AUTO)
OSD Language

English, Chinese

SpeakerBuilt-in
View AngleHor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)
Parking LineBuilt-in Parking lines adjustment, adjusting according to the vehicle width
Working voltageInput Power: DC12V-36V, Output Power: DC12V
Power consumption5W
Working temperature-20ºC to +70ºC
Storage temperature-30ºC to +80ºC
Built-in light sensorAdjust the screen brightness automatically
Dimensions180x121x24.2mm
Others

Built-in lightning protection device; Monitor with reverse polarity protects.

Automatically switch to V2 when reversing.

Four channels adjust the image flip in left, right, upper, and lower independently

AccessoriesRemote controller, Power supply cable, User manual, U Shape Bracket
