DC12-36V 7″ AHD Quad Dashboard Recoarding Monitor

FA-700QDVA Specifications:

7 Inch Car AHD DVR Quad Monitor(Detachable sunshade)

Screen Ratio:16:9

High Resolution:1024*R.G.B*600

Back Light Luminance:650cd/㎡

4 Channel AHD video input, Video Compatibility: AHD/CVBS

4-way trigger function, trigger priority: CH2 > CH1 > CH3 > CH4

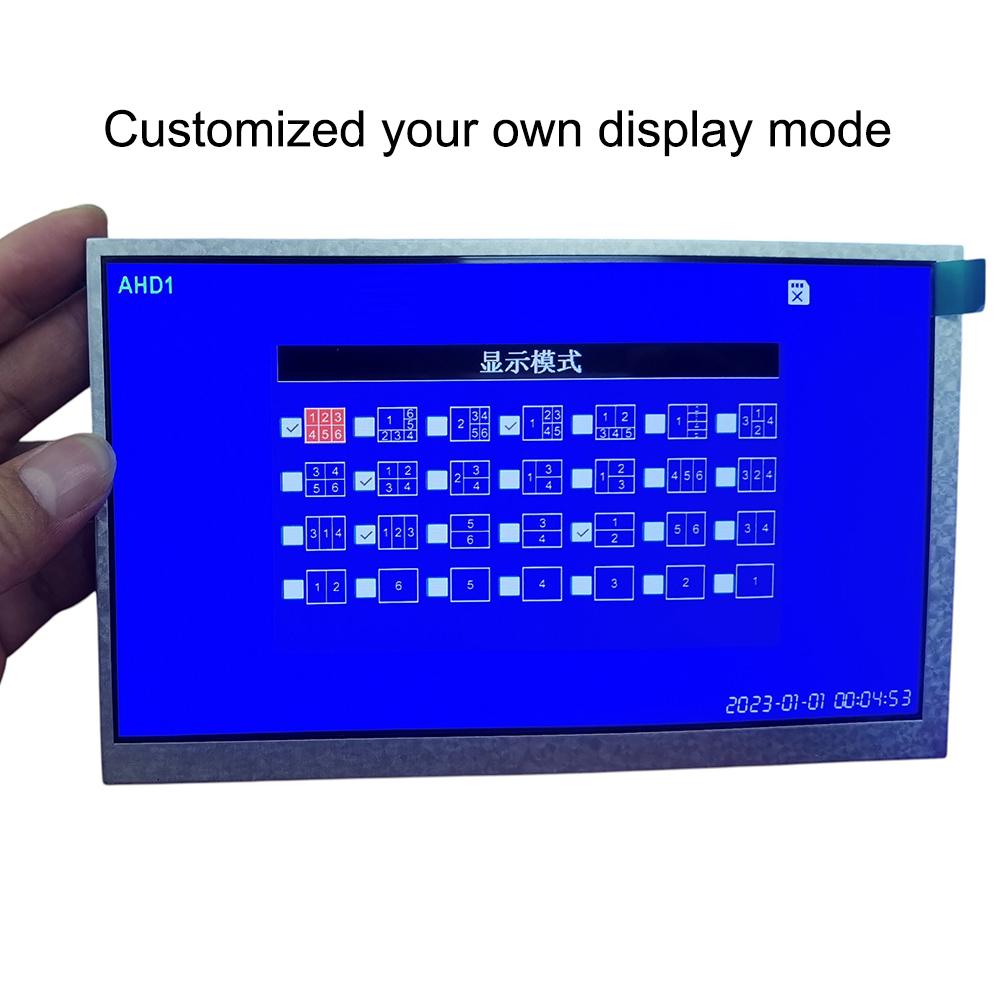

12-segmentation modes, Full image/2 images/4 images adjustable, 2 picture or 3 picture or 4 picture adjustable

Four channels adjust the image flip in left, right, upper and lower independently

Built-in lightning protection device; Monitor with reverse polarity protection;

Set up delay video recording function when parking extinguishing (0-24 hours adjustable)

4-way synchronous online video playback, pause, fast forward, fast backward and other operations

Supports four channels of video recording at the same time, and the video recording is stored into four independent files

Video files can be locked for protection. Locked files will not be overwritten and deleted.

Storage card supports overlay deletion automatically and manual deletion

Video storage: SD high-speed card, maximum support 128GB (256GB Optional)

Video compression format:H.264 compression mode

With power-off memory protection function

Built-in Parking lines adjustment, adjusting according to the vehicle width

Built-in light sensor, adjustment screen brightness automatically

View angle: Hor. L(85°) R(85°)   Ver. UP(85°) DOWN(85°)

OSD menu, remote control

Built-in Speaker

Compatible system:NTSC & PAL (automatically)

Power Supply: Input Power: DC12V-36V, Output Power: DC12V

4 PIN connector for special camera

Size: 180x121x26mm

Accessories: Remote controller, Power supply cable, User manual, Bracket

Other Functions: Double segmentation/Six divisions/ Eight divisions(Optional)
