7 Inch AHD Quad DVR BSD Monitor

FA-700BSD Specifications:

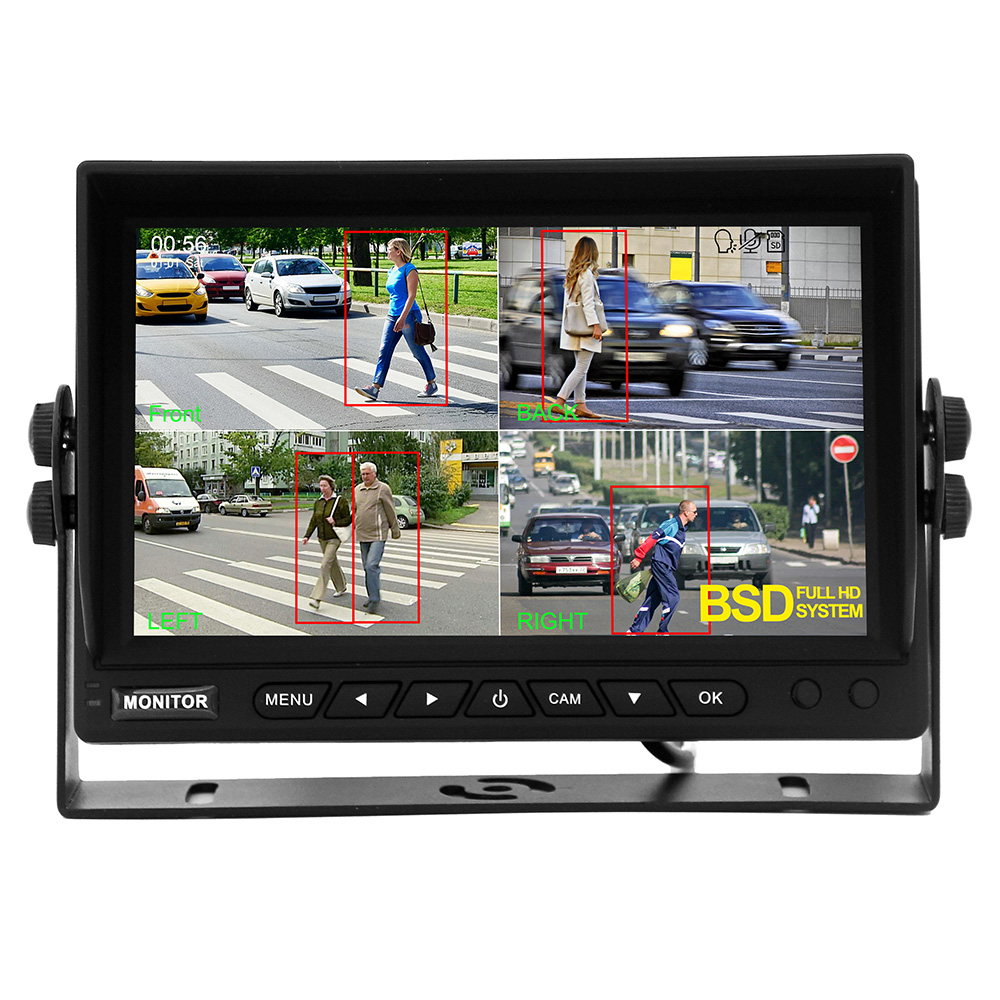

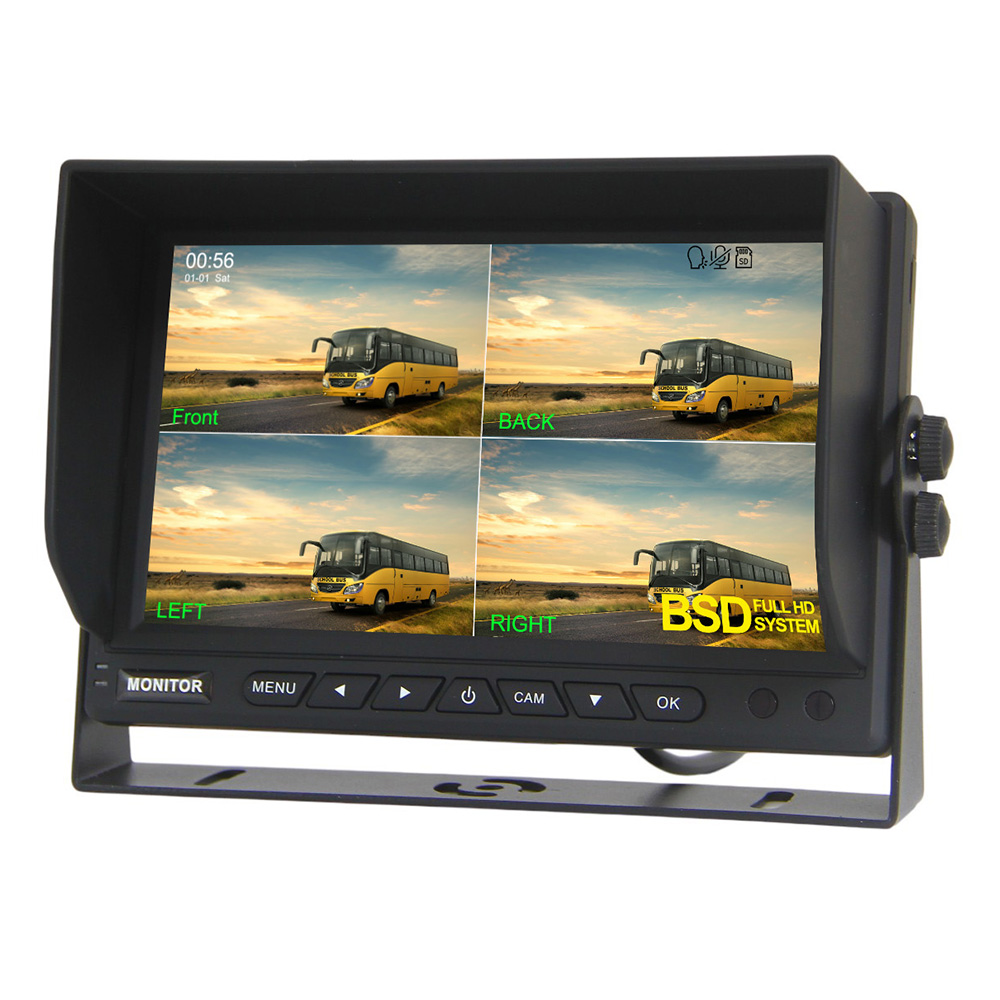

7 Inch Car AHD DVR Quad Monitor with Blind Spot Detection Warning System(BSD)

Screen Ratio:16:9

High Resolution:1024*R.G.B*600

Back Light Luminance:500cd/㎡

4 Channel AHD video input, Full  images, support AHD720P Video Input

Four channels independently adjust the image flip in left, right, upper and lower directions

4-way trigger function, trigger priority: CH2 > CH1 > CH3 > CH4

With Removable Sunshade design, With Metal U Shape Bracket

Built-in lightning protection device; Monitor with reverse polarity protection;

Video storage: SD high-speed card for video storage, minimum 16GB, maximum128GB, card speed not less than 10M/S

Video compression format: H.264 compression mode

Supports four channels of video recording at the same time, and the video recording is stored into four independent files

Supports fast photography, and supports replay previous videos and images. It supports pause, fast forward, fast backward and other operations.

Video files can be locked for protection. Locked files will not be overwritten and deleted.

Storage card supports overlay deletion automatically and manual delete

Built-in Speaker

Power consumption: ＜ 5W

OSD menu, remote control

Compatible system:NTSC & PAL (automatically)

Power Supply: Input Power: DC12V-36V, Output Power: DC12V

4-PIN connector for special camera

Size: 180*121*26mm

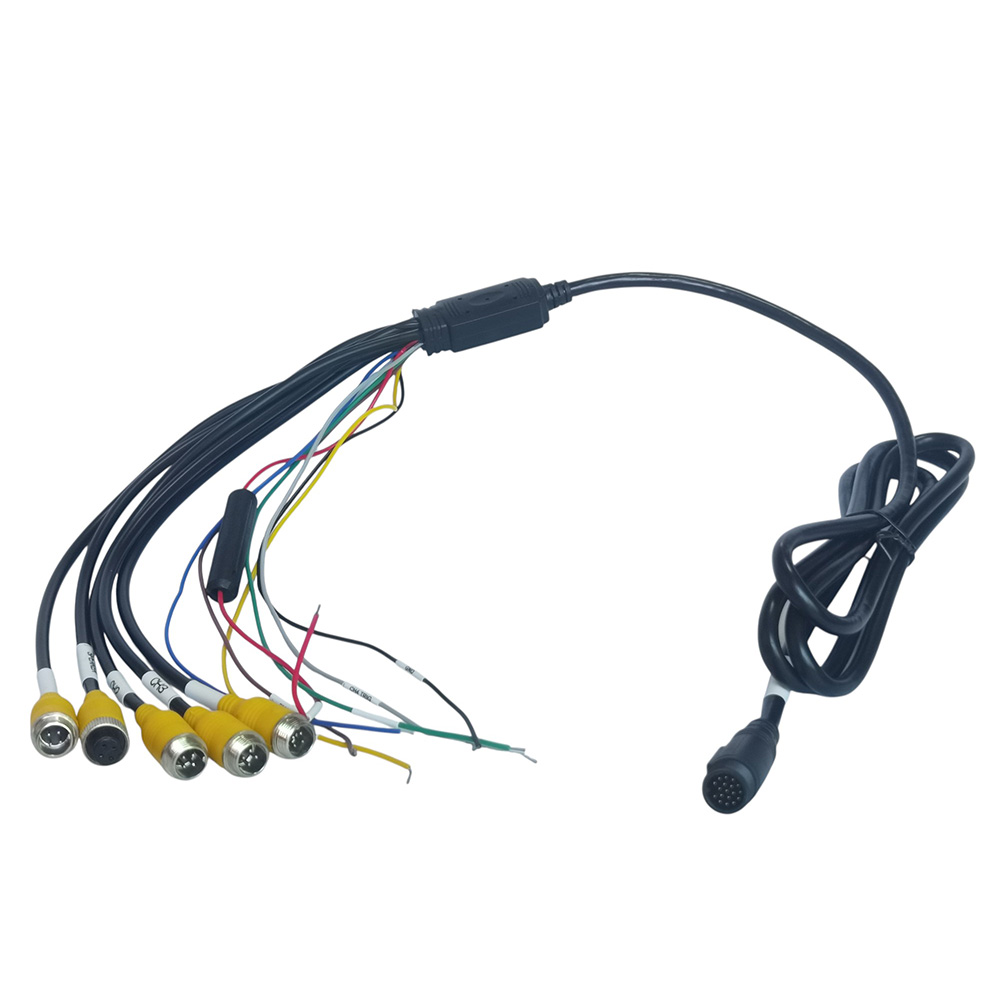

Accessories: Remote controller, Power supply cable, User manual, Bracket
