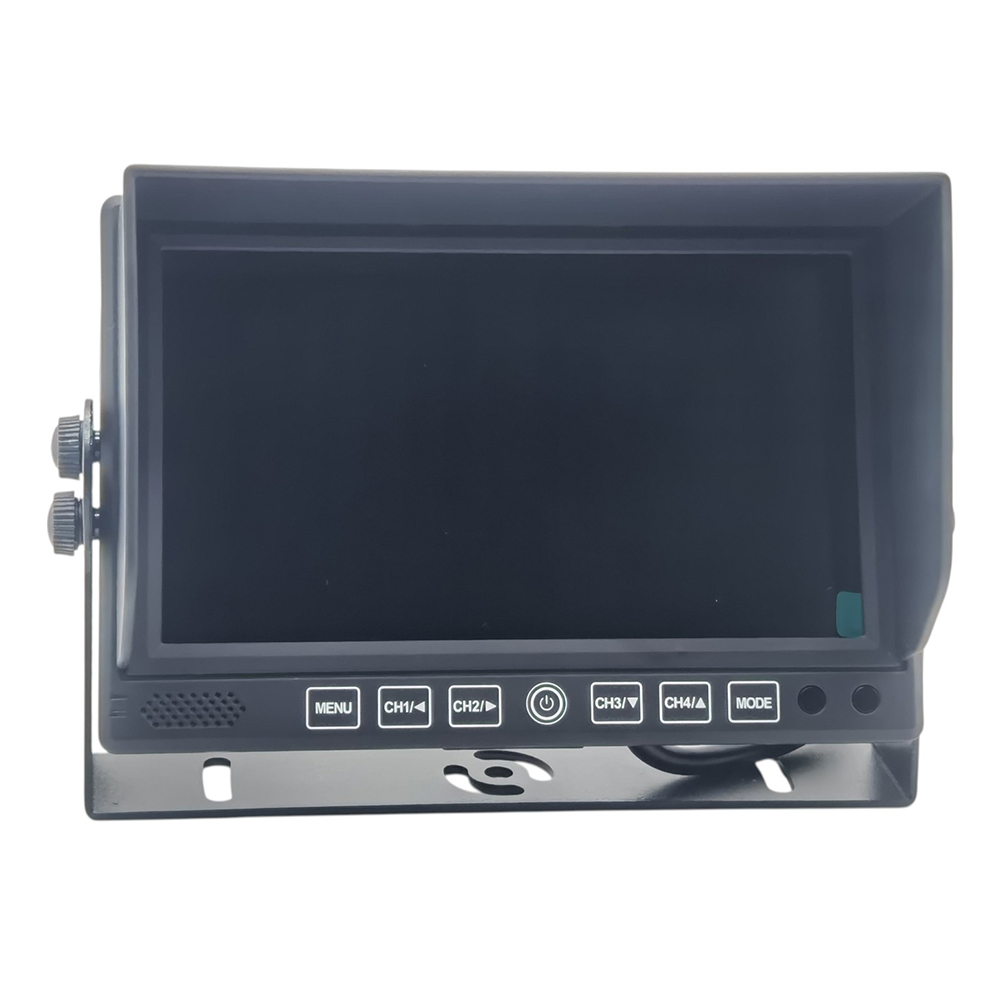

DC12-36V 7 INCH AHD 1080P QUAD DASH MOUNT MONITOR

FA-701QAHD Specifications:

7 inch AHD Car Quad Monitor with IPS Screen(Detachable sunshade)

Aspect ratio: 16:9 Wide Screen

High Resolution:1024*600

Back Light luminance: 650cd/m2

4 way AHD video input

Support 4pcs AHD/CVBS cameras video simultaneous input,1/2/3/4 image display adjustable

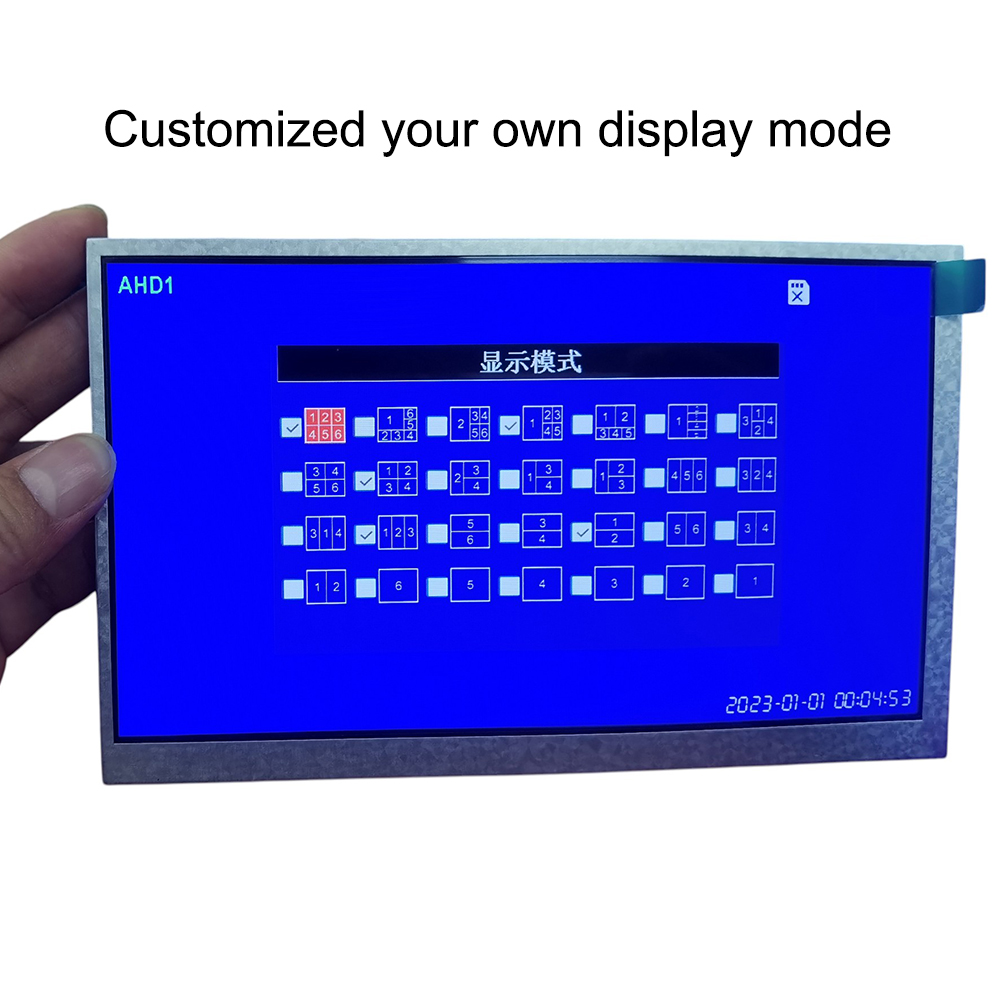

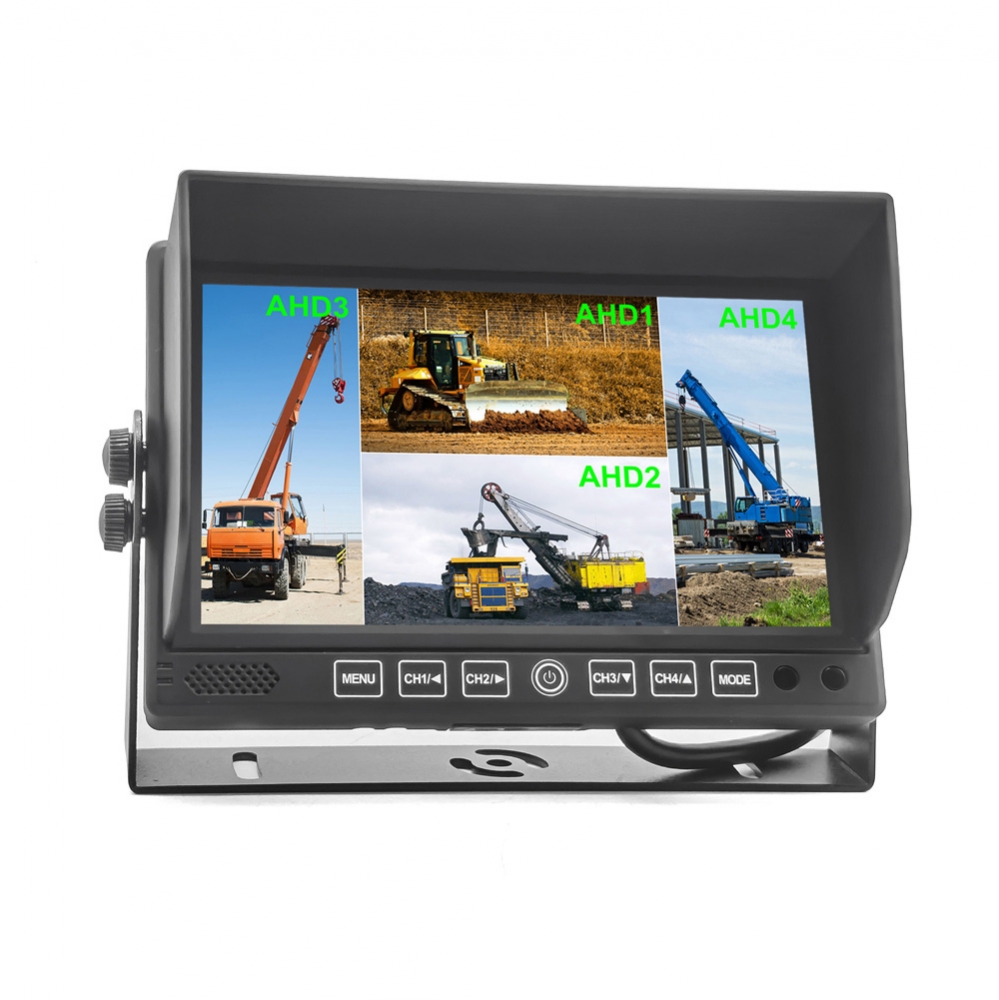

The monitor can be set as four kinds of view modes: single, dual, triple, or quad.

Four channels adjust the image flip in left, right, upper, and lower independently

Power Supply: Input Power: DC12V-36V, Output Power: DC12V

System: NTSC & PAL (automatically)

OSD Language:English, Chinese

Built-in Parking lines adjustment, adjusting according to the vehicle width

Built-in light sensor, adjustment screen brightness automatically

4 ways Trigger function,Trigger priority:CH2>CH1>CH3>CH4

Built-in lightning protection device; Monitor with reverse polarity protection;

Built-in Speaker

Material: ABS

View angle: Hor. L(85°) R(85°)   Ver. UP(85°) DOWN(85°)

Storage temperature: -30°C ~80°C

Working temperature:-20°C ~ 70°C

Power consumption: 5W

Size: 180x121x26mm

Accessories: Remote controller, Power supply cable, User manual, Bracket

Connector: 4-Pin Connector/RCA Connector optional

DVR Function(Optional)

Image View: Double segmentation/Six divisions/ Eight divisions(Optional)
