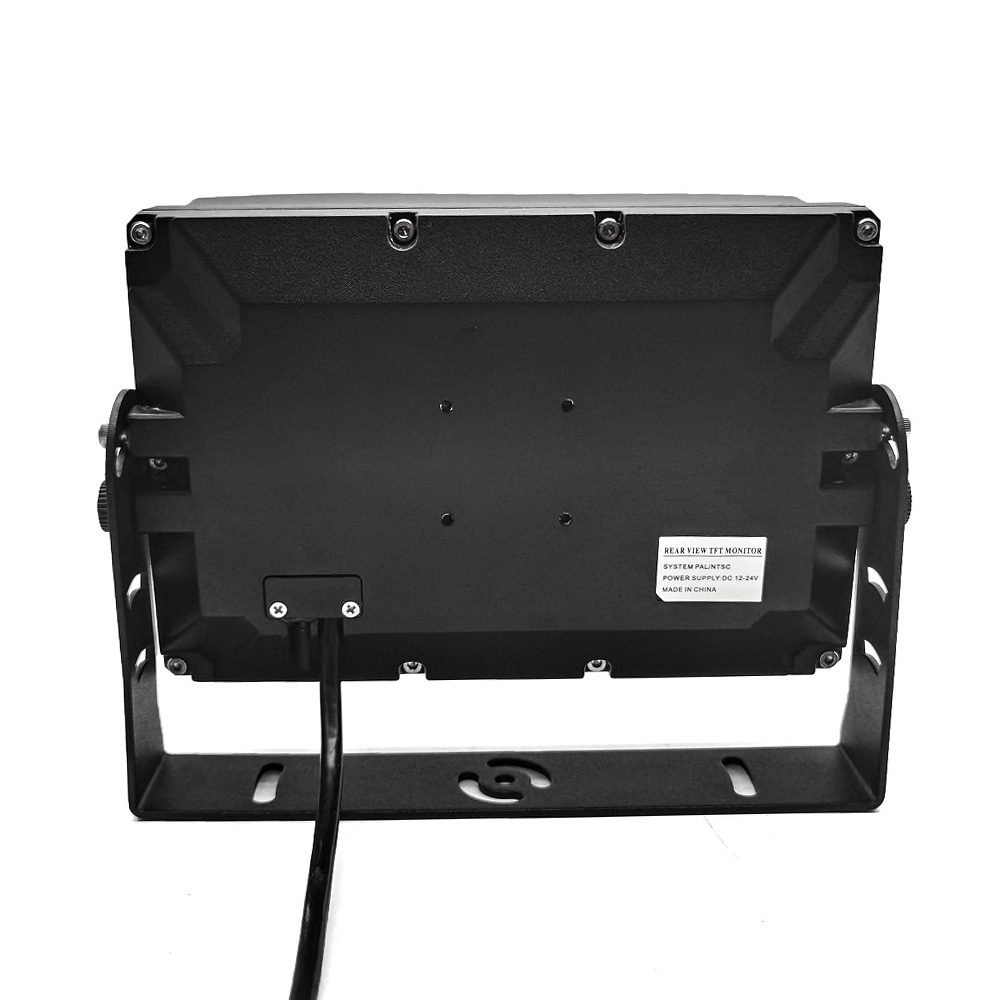

7 Inch Waterproof IP69K AHD Dual Screen Car Monitor
Name:7 Inch Waterproof IP69K AHD Dual Screen Car Monitor
Model No.:FA-703TA
Screen Size:7 Inch Waterproof IP69K AHD Dual Screen Car Monitor
Aspect Ratio:16:9
Resolution:1024xR.G.Bx600
Video Input:2 Way Input
Material:Metal
System:PAL& NTSC(auto)
Remote Control:Yes
Power Supply:Input Power: DC12V-36V, Output Power: DC12V
Bracket:U Shape Braket
Dimension:188x127.2x34mm
Waterproof Rate:IP69K
Warranty:1 year

Key Features:


DC12-24V 7 Inch Waterproof IP69K AHD Dual Screen Car Monitor

FA-703TA Features:

The 7 Inch Waterproof IP69K AHD Dual Screen Car Monitor with removable sunshade

Mounts to the dashboard with ease

Support two camera inputs, and display 1 to 2 cameras simultaneously

This monitor doesn't have audio functionality

Power Operation Voltage: DC12-24 volts

Suitable for 4WDs, Motorhomes, Horse Trailers, Trucks, buses, and heavy machinery etc.


Car Monitor (FA-703TA)
Color LCD screen7-inch IPS screen, with removable sunshade
Resolution1024xRGBx600
Aspect ratio16:9 Wide Screen
Brightness(cd/m2)500cd/m2
Video input2-way video input, Video Compatibility: CVBS/ AHD
Picture modeThe monitor can be set in two kinds of view modes: single and dual.
Trigger2 ways Trigger function, Trigger priority: CH2>CH1
Color systemPAL/NTSC (AUTO)
OSD Language

English, Chinese

SpeakerBuilt-in
Dustproof & Waterproof levelIP69K
Shock Resistance 5.9G
View AngleHor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)
Parking LineBuilt-in Parking lines adjustment, adjusting according to the vehicle width
Working voltageInput Power: DC12V-36V, Output Power: DC12V
Power consumption5W
MaterialMetal
Working temperature-20ºC to +70ºC
Storage temperature-30ºC to +80ºC
Built-in light sensorAdjust the screen brightness automatically
Dimensions188x127.2x34mm
Others

Built-in lightning protection device; Monitor with reverse polarity protects.

Automatically switch to V2 when reversing.

Two channels adjust the image flip in left, right, upper, and lower independently

AccessoriesRemote controller, Power supply cable, User manual, U Shape Bracket
DVR FunctionOptional








Hits: 【Print】
Pre:7 Inch AHD Dual Screen Car Monitor     Next:Car Monitor Metal Bracket

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
