7 Inch AHD Quad Heavy Duty Monitor 7 Inch AHD Quad Heavy Duty Monitor
Name:7 Inch AHD Quad Heavy Duty Monitor
Model No.:FA-700QAHD
Screen Size:7 Inch AHD Quad Heavy Duty Monitor
Aspect Ratio:16:9
Video Input:4 Way AHD Input
System:PAL& NTSC
Remote Control:Yes
Power Supply:Input Power: DC12V-36V, Output Power: DC12V
Bracket:U Shape Braket
Warranty:1 Year

Key Features:

7 Inch AHD Quad Heavy Duty Monitor

FA-700QAHD Specifications:

7 inch AHD Car Quad Monitor with IPS Screen
Aspect ratio: 16:9 Wide Screen
High Resolution:1024*600
Back Light luminance: 650cd/m2
4 way AHD video input
Support 4pcs AHD/CVBS cameras video simultaneous input,1/2/3/4 image display adjustable

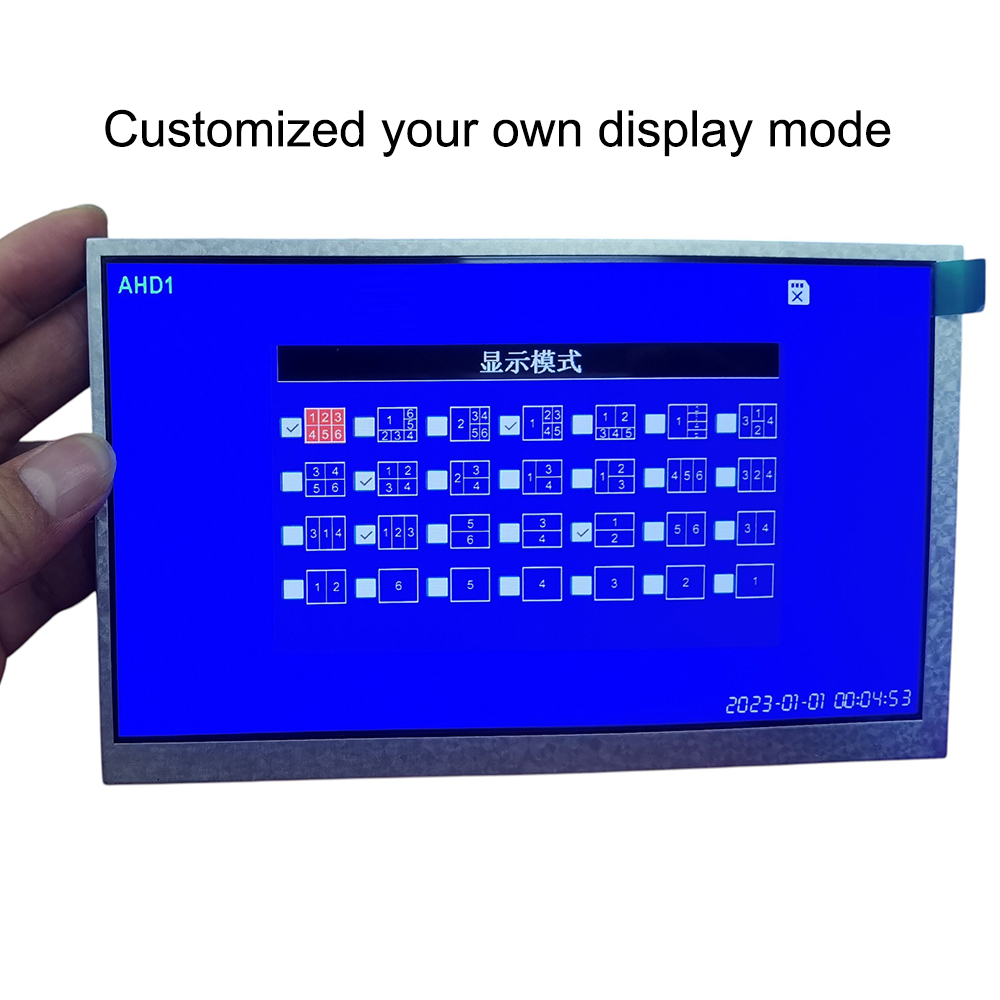

Monitor can be set as four kinds of view modes: single, dual, triple or quad.
Power Supply: Input Power: DC12V-36V, Output Power: DC12V
System: NTSC & PAL (automatically)
OSD Language:English,Simplify Chinese
Built-in Parking lines adjustment, adjusting according to vehicle width
4 ways Trigger function,Trigger priority:CH2>CH1>CH3>CH4

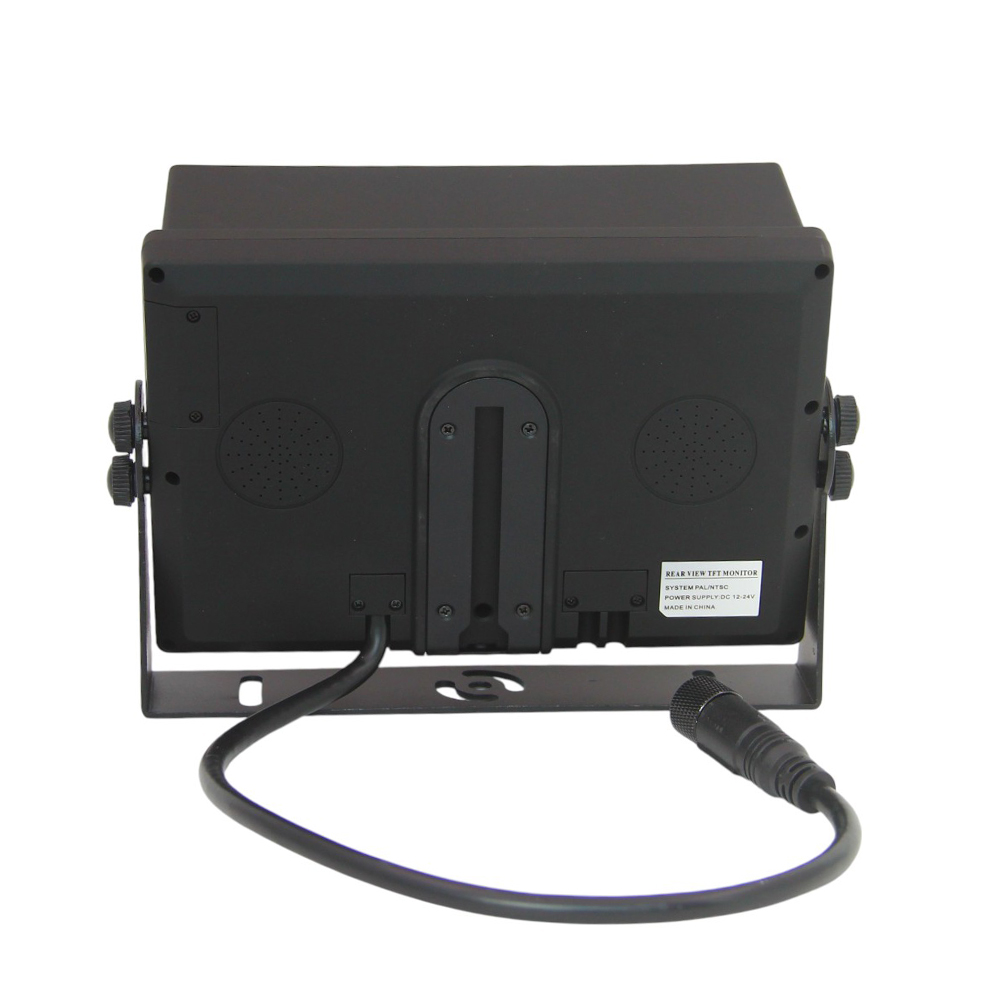

With Removable Sunshade design, With Metal U Shape Bracket
Built-in lightning protection device; Monitor with reverse polarity protects;
Built-in Speaker(optional)
Material: ABS
View Angle: Hor. L(180) R(180)  Ver. UP(180) DOWN(180)
Storage temperature: -30°C ~80°C
Working temperature:-20°C ~ 70°C
Power consumption: 5W
Size: 180x121x26mm

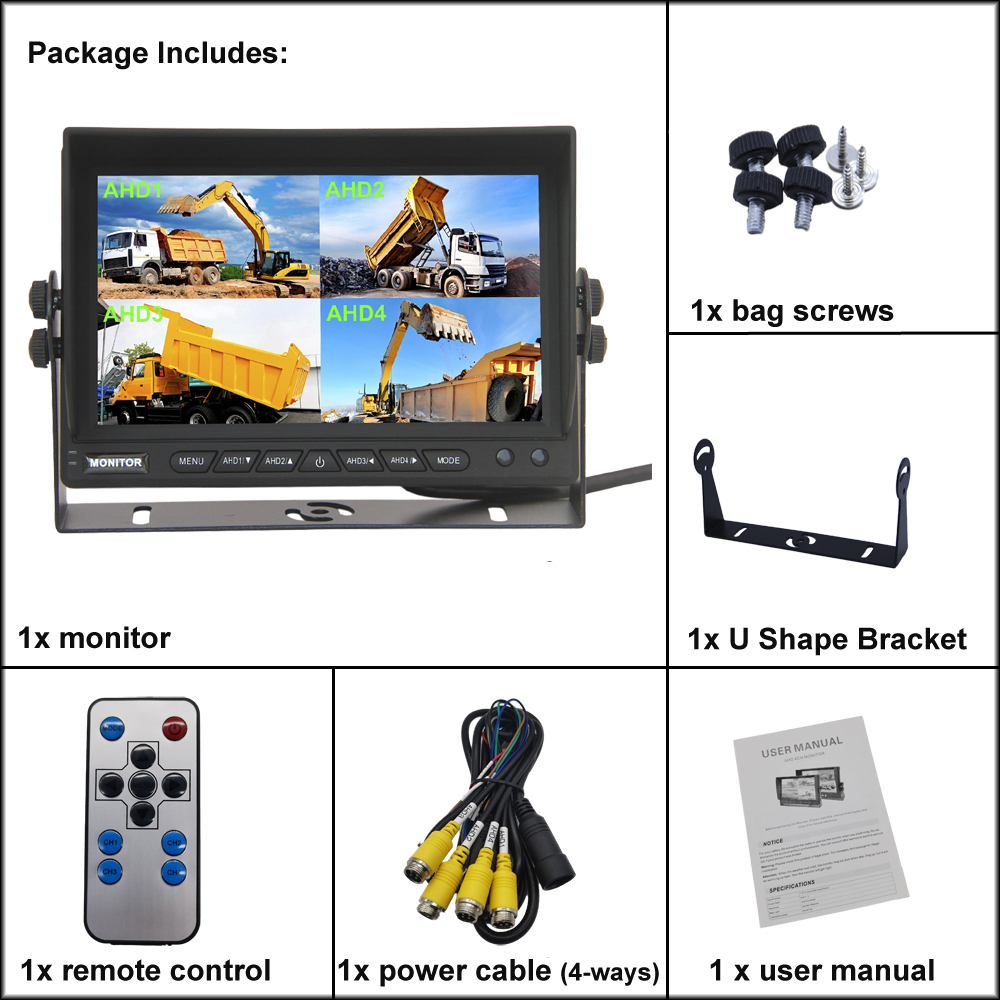

Accessories: Remote controller, Power supply cable, User manual, Bracket
Connector: 4-Pin Connector/RCA Connector optional

Hits: 【Print】
Pre:7 Inch Rearview Car AHD Monitor     Next:10.1 Inch 1080P AHD Truck LCD Quad Monitor

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
