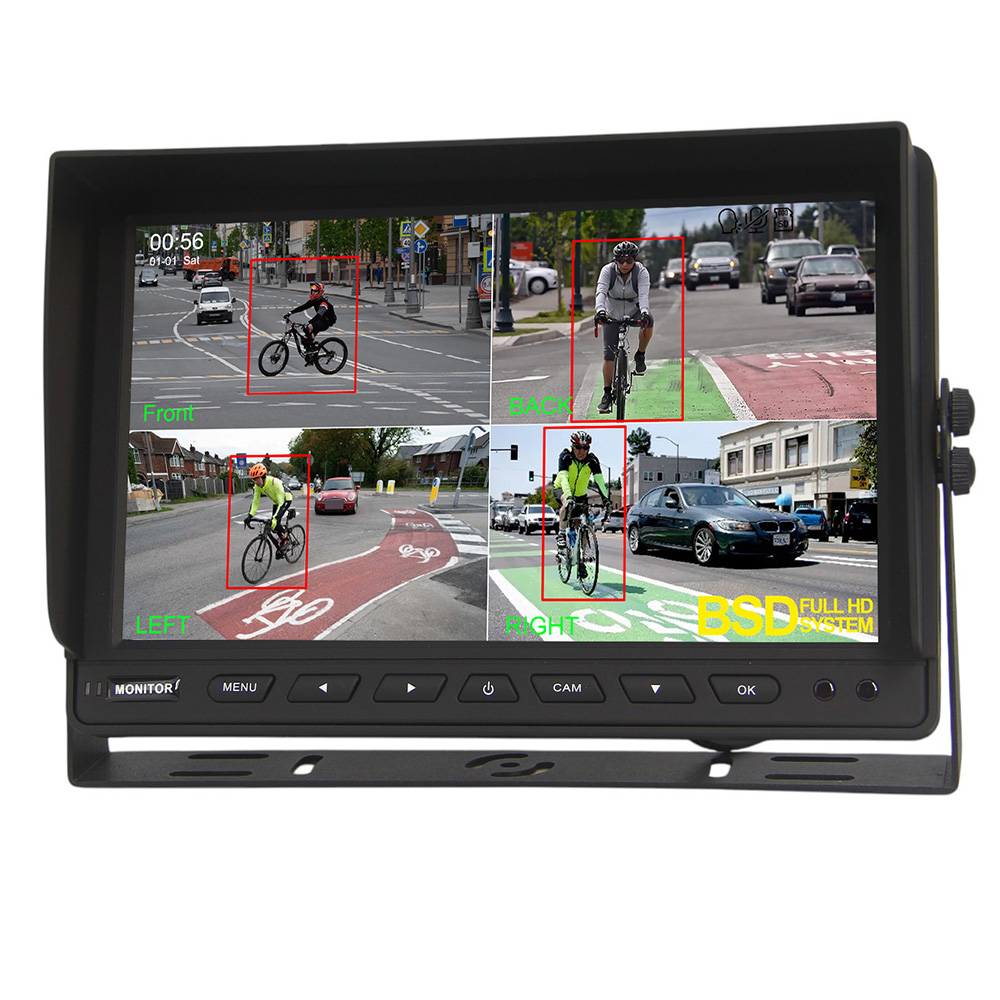

10.1 inch AHD Quad DVR Monitor with built in BSD function
Name:10.1 inch AHD Quad DVR Monitor with built in BSD function
Model No.:FA-1002BSD
Screen Size:10.1 inch AHD Quad DVR Monitor with built in BSD function
Aspect Ratio:16:9
Resolution:1024xR.G.Bx600
Video Input:4 Way AHD Input
Speaker:Yes
System:PAL& NTSC
Remote Control:Yes
Power Supply:Input Power: DC12V-36V, Output Power: DC12V
Bracket:U Shape Braket
Dimension:257x170x33mm
Warranty:1 Year

Key Features:


10.1 Inch AHD Quad DVR BSD Monitor

FA-1002BSD Features:

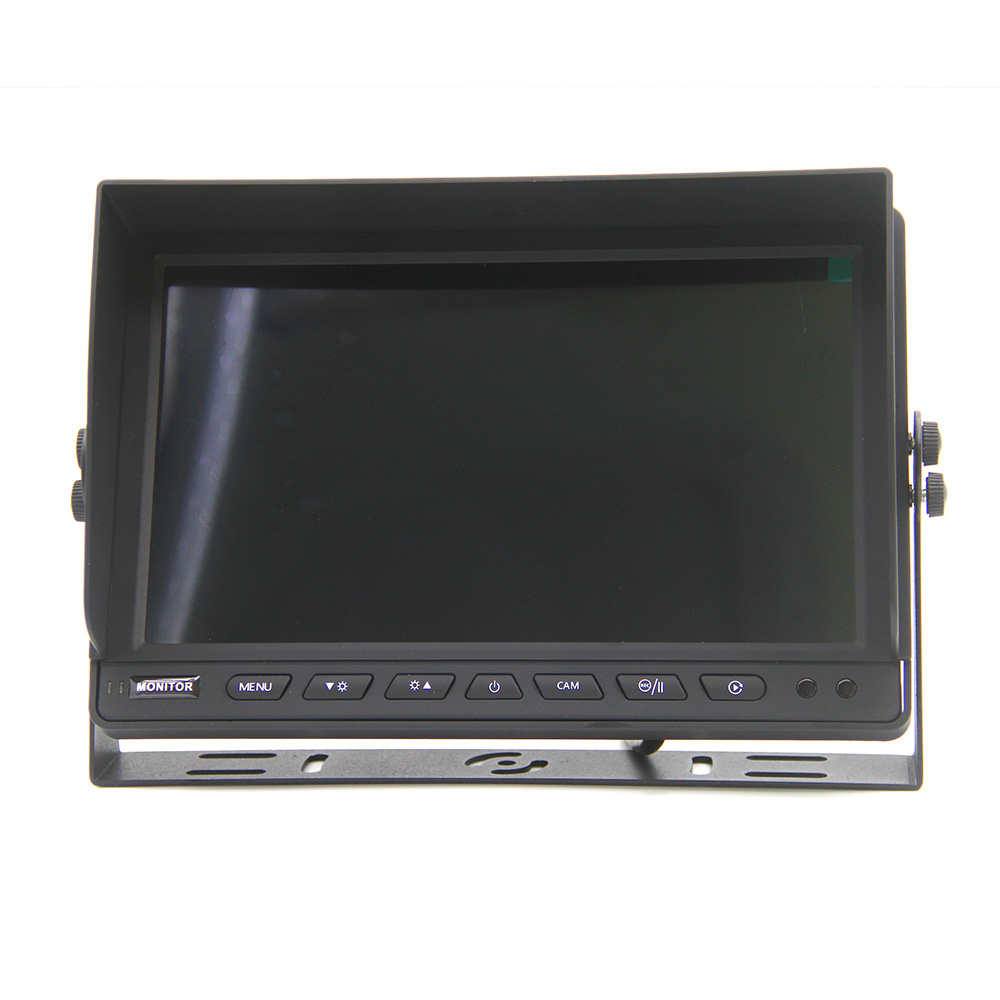

The 10.1 inch AHD Quad DVR Monitor with built in BSD function with removable sunshade

Mounts to the dashboard with ease

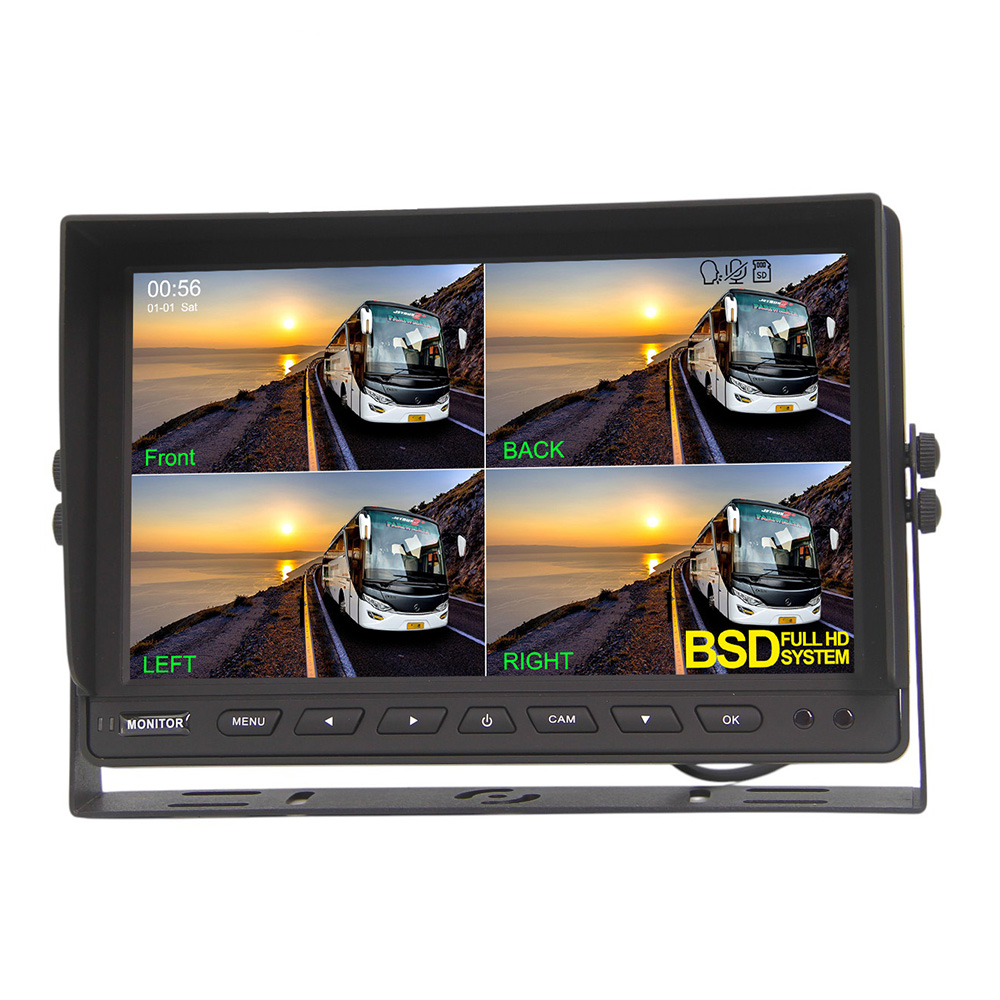

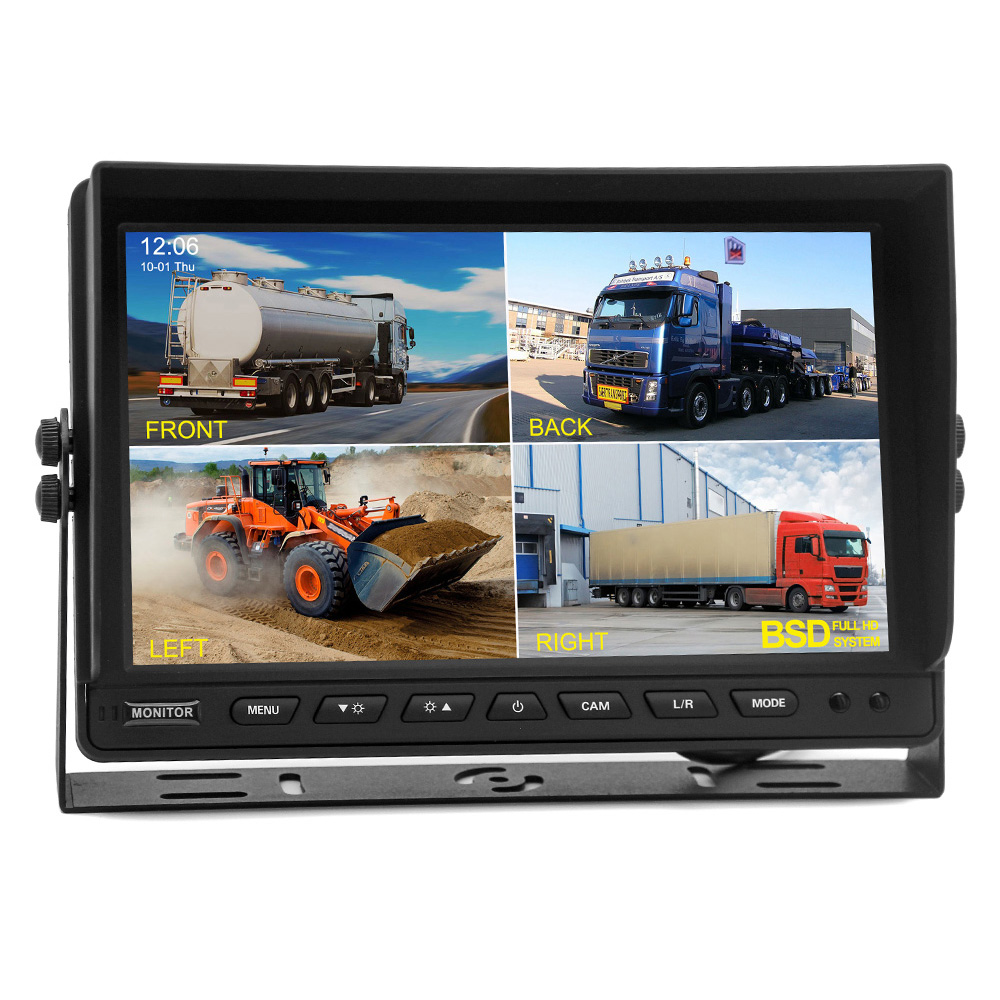

Support 4 camera inputs, and display 1 to 4 cameras simultaneously

This monitor has audio functionality

Power Operation Voltage: DC12-24 volts

Suitable for 4WDs, Motorhomes, Horse Trailers, Trucks, buses, and heavy machinery etc.


Car Monitor (FA-1002BSD)
Color LCD screen10.1-inch IPS screen, with removable sunshade

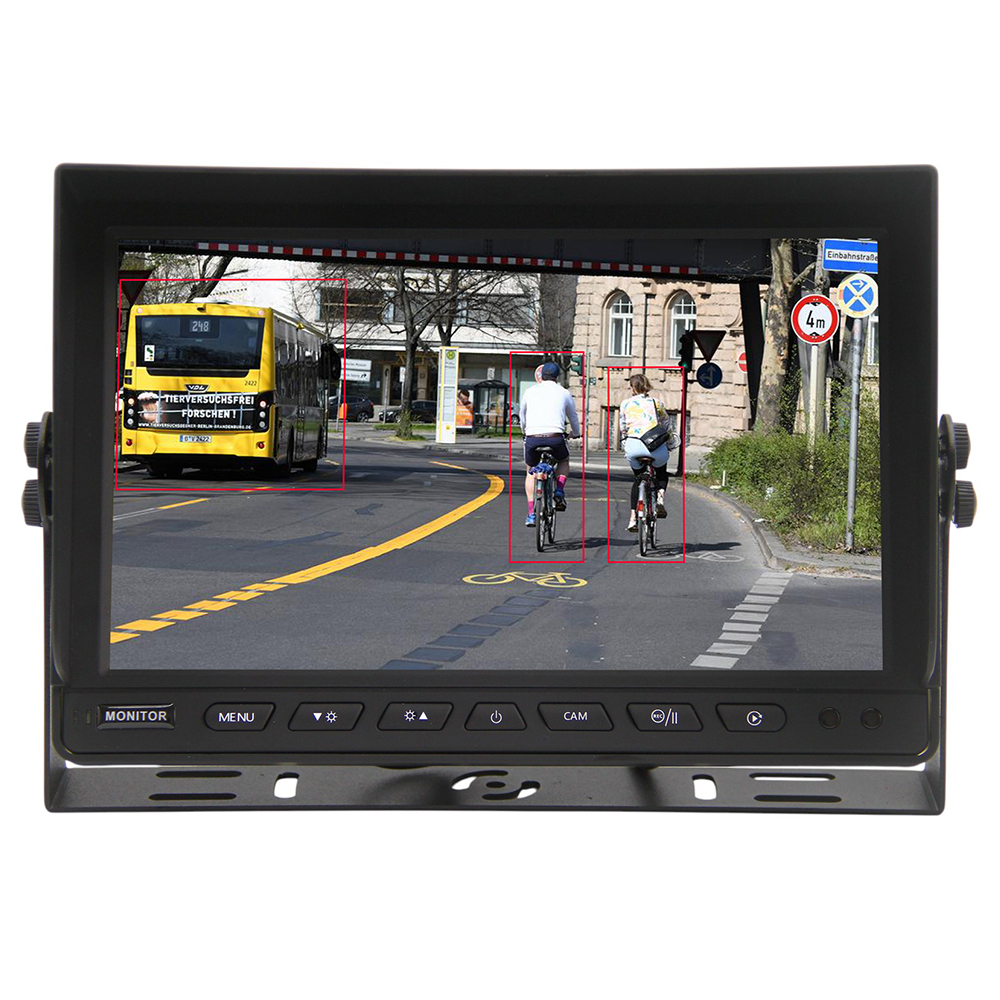

BSD FunctionBuilt-in blind spot monitoring system (blind spots)
Resolution1024xRGBx600
Aspect ratio16:9 Wide Screen
Brightness(cd/m2)500cd/m2
Video input4-way video input, Video Compatibility: AHD

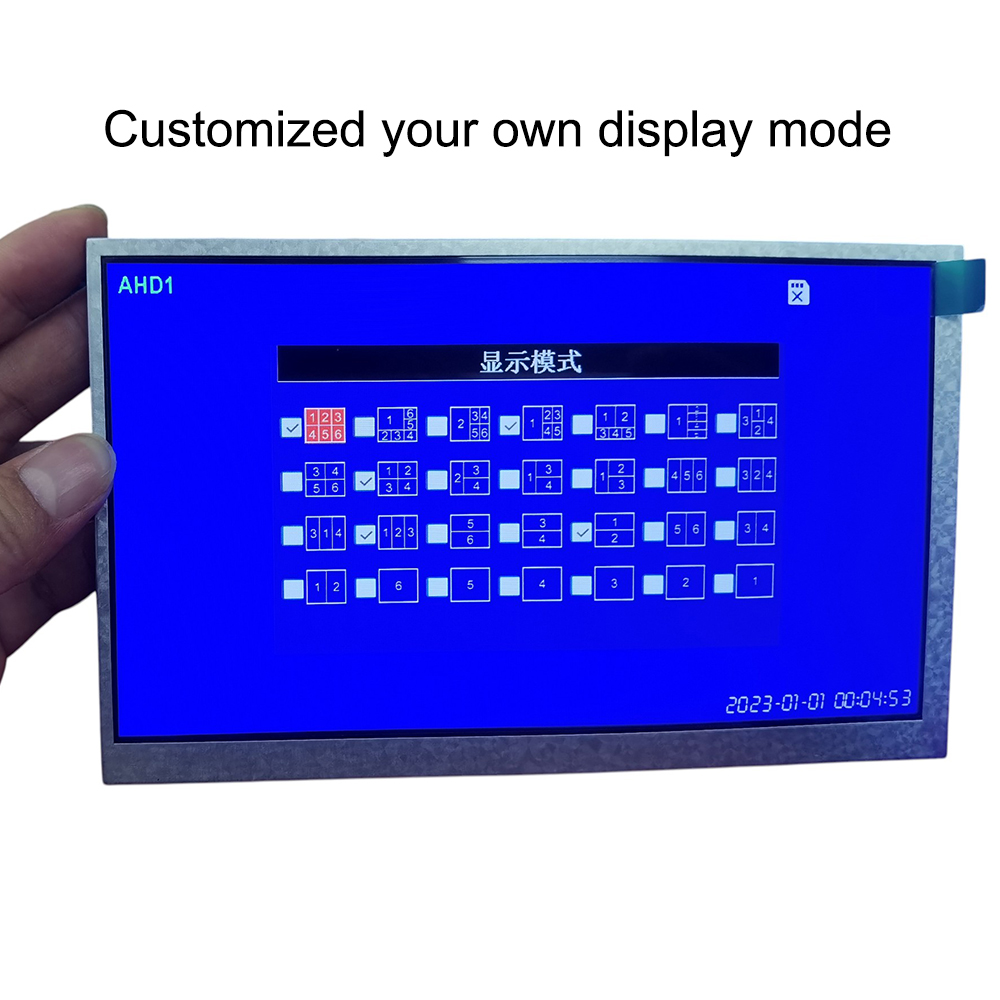

Picture modeThe monitor can be set in four kinds of view modes: single, dual, triple, or quad.
Trigger4 ways Trigger function, Trigger priority: CH2>CH1>CH3>CH4
Color systemPAL/NTSC (AUTO)
OSD Language

English, Chinese

DVR FunctionBuilt-in DVR, Max support for 256GB SD Card.
Video Operation

4-way synchronous online video playback, pause, fast forward, fast backward, and other operations.

Video files can be locked for protection. Locked files will not be overwritten and deleted.

The storage card supports both automatic and manual deletion of overlays.

Set up delay video recording function when parking extinguishing (0-24 hours adjustable)

Supports four channels of video recording at the same time, and the video recording is stored in four independent files

Video compression formatH.264 compression mode
SpeakerBuilt-in
View AngleHor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)
Parking LineBuilt-in Parking lines adjustment, adjusting according to the vehicle width
Working voltageInput Power: DC12V-36V, Output Power: DC12V
Power consumption5W
Working temperature-20ºC to +70ºC
Storage temperature-30ºC to +80ºC
Built-in light sensorAdjust the screen brightness automatically
Dimensions257*170*33mm
Others

Built-in lightning protection device; Monitor with reverse polarity protects.

Automatically switch to V2 when reversing.

Four channels adjust the image flip in left, right, upper, and lower independently

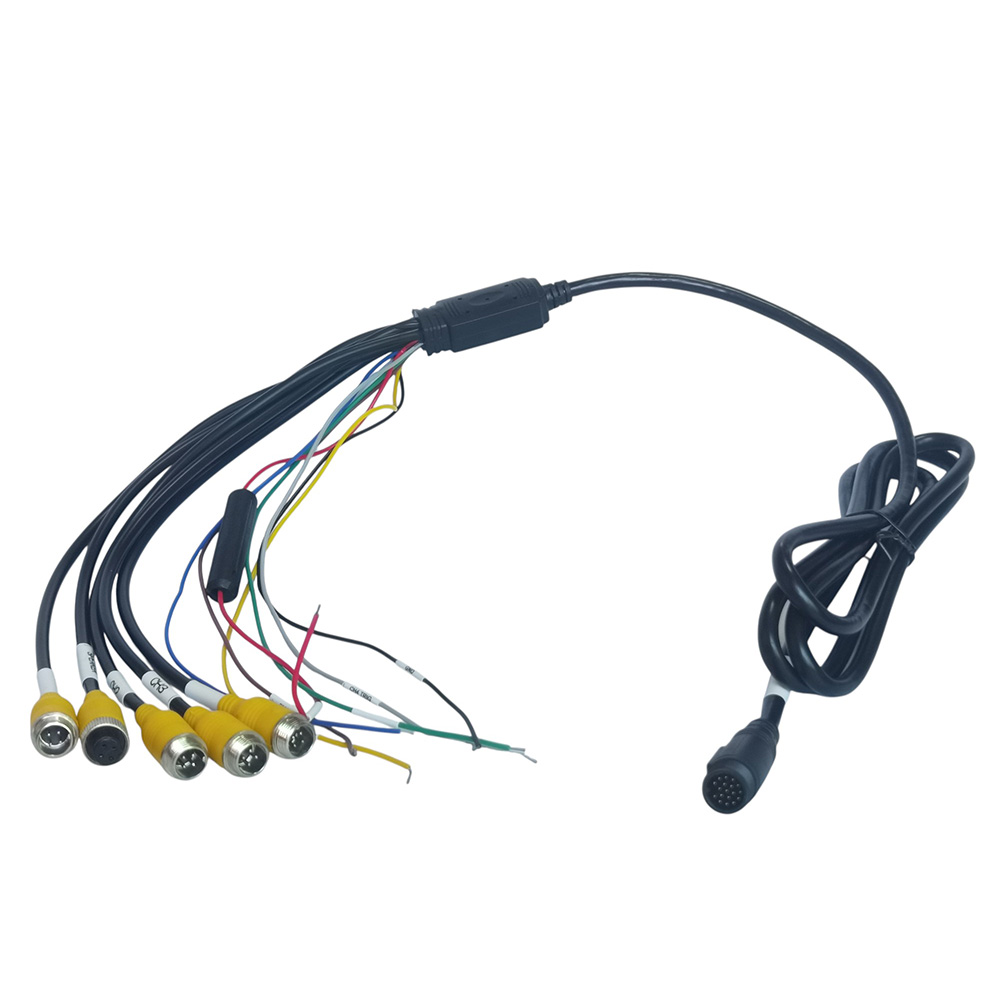

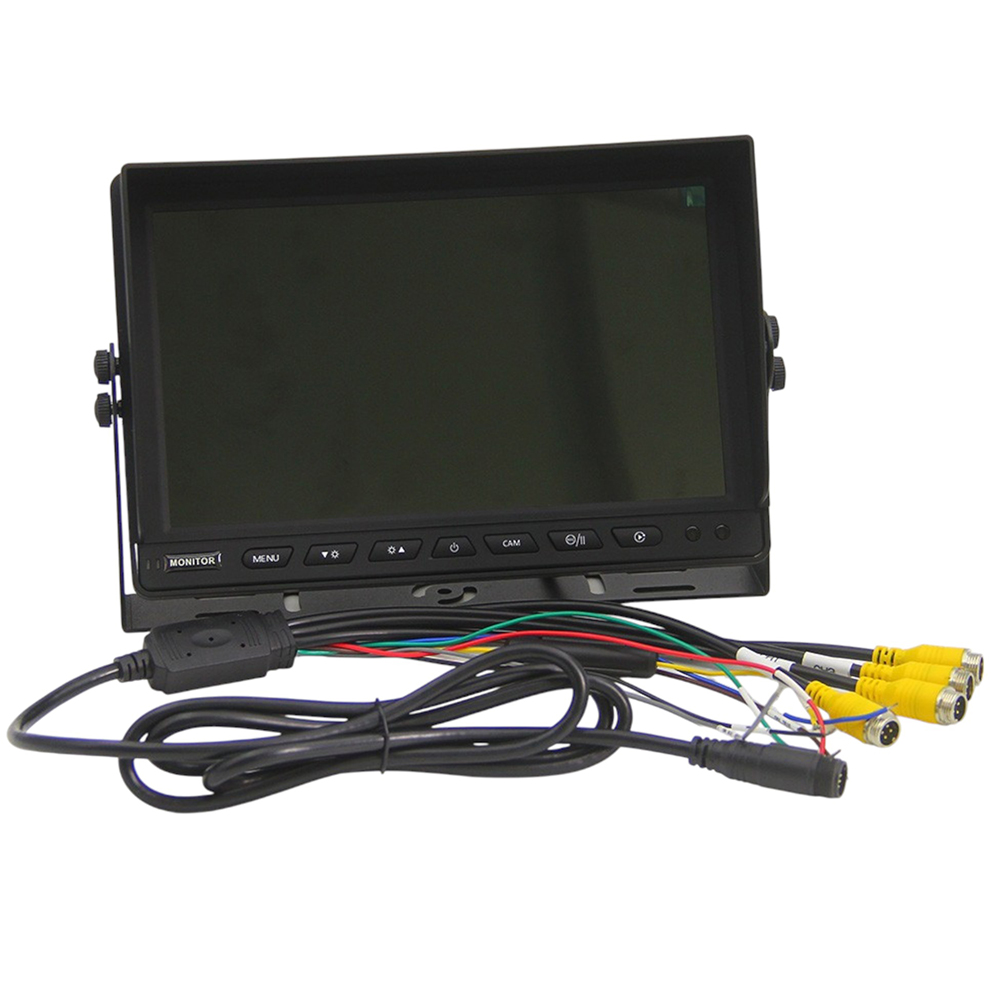

AccessoriesRemote controller, Power supply cable, User manual, U Shape Bracket
