| Name: | Car 3D 360 Degree Surrounding Bird View Security System |
|---|---|
| Model No.: | RVM-3601 |
| Screen Size: | 7 Inch Car AHD Monitor |
| Aspect Ratio: | 16:9 |
| Resolution: | 1024xRGBx600 |
| Video Input: | 3 way AHD video input |
| Speaker: | Optional |
| System: | PAL& NTSC |
| Remote Control: | Yes |
| Power Supply: | Input Power: DC12V-36V, Output Power: DC12V |
| Bracket: | U Shape Bracket |
| Connector: | RCA or 4-PIN |
| Camera: | 4pcs AHD 1080P Camera |
| Warranty: | 1 Year |

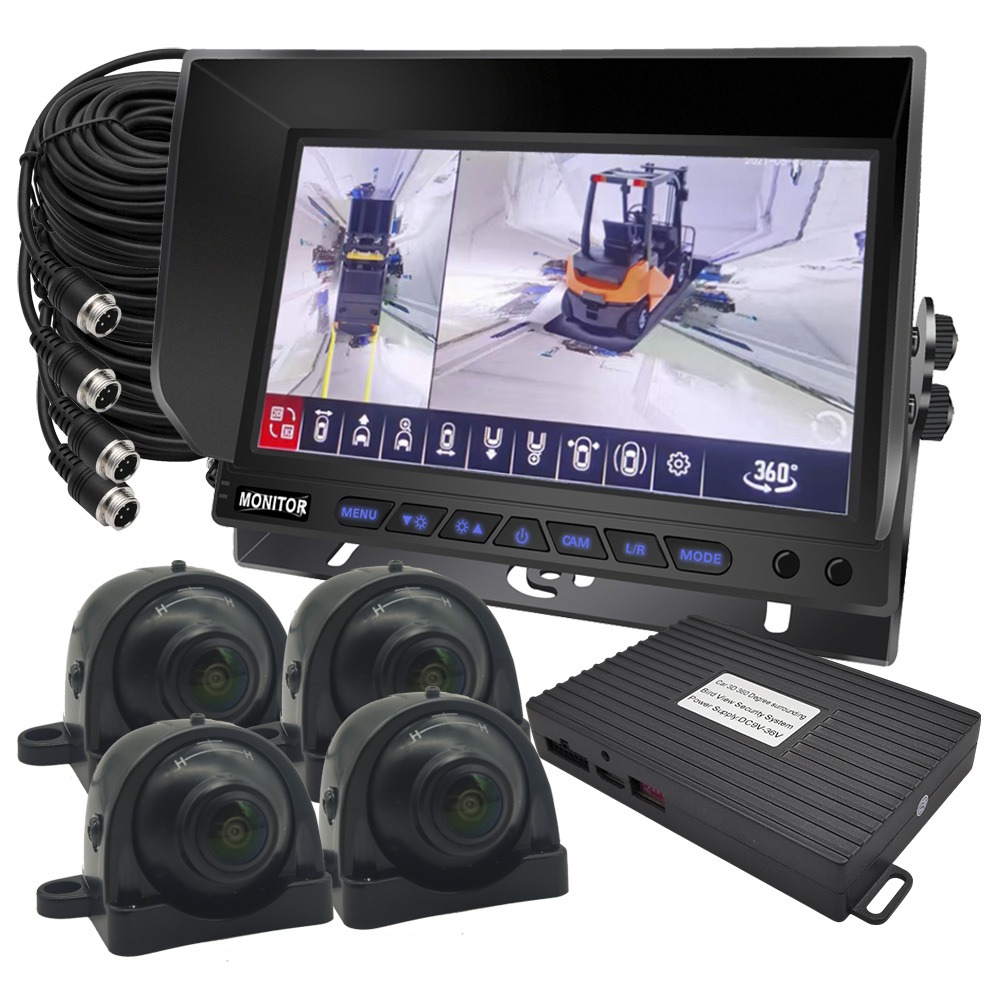

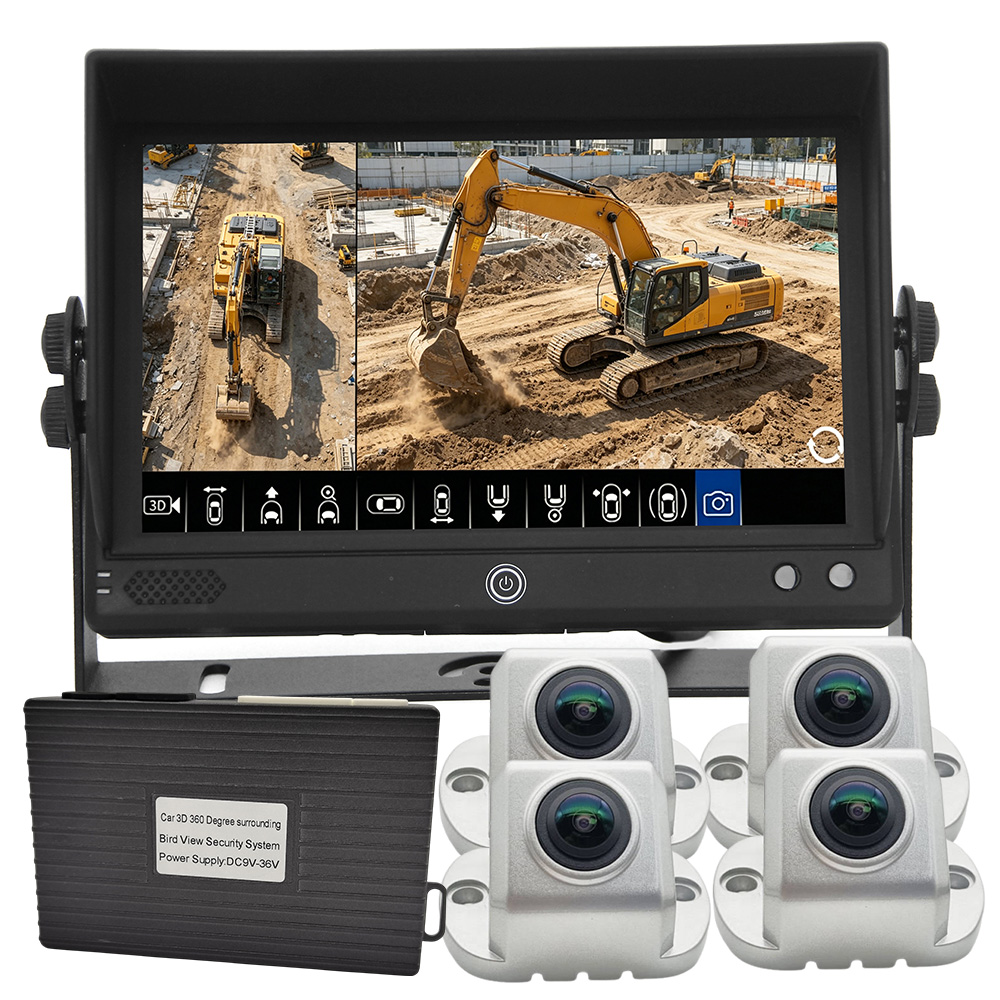

DC12V-36V Car 3D 360 Degree Surrounding Bird View Security System
RVM-3601 Specifications:

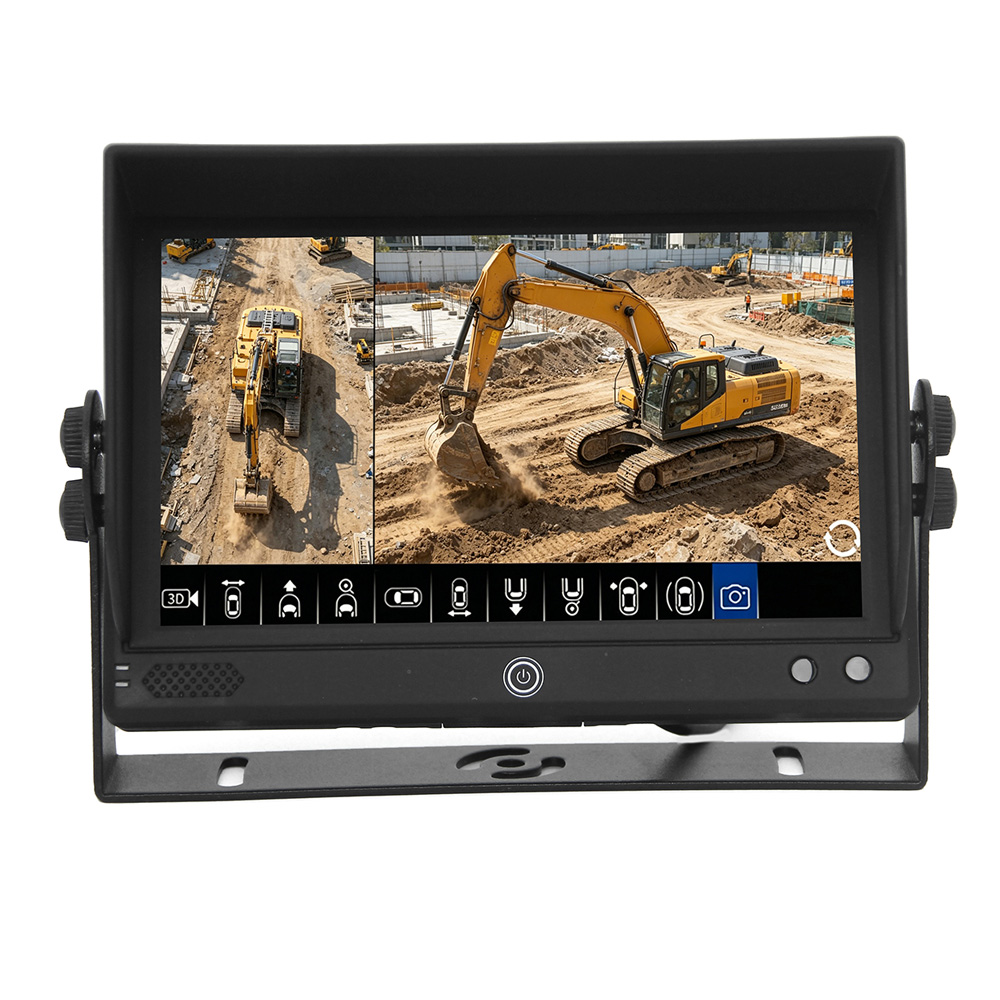

7 inch AHD Car Monitor with IPS Screen
Aspect ratio: 16:9 Wide Screen
High Resolution:1024*600
Back Light luminance: 650cd/m2
3 ways AHD video input(2 ways AHD Video Input optional), 3-way trigger
Power Supply: Input Power: DC12V-36V, Output Power: DC12V
System: NTSC & PAL (automatically)
OSD Language: English, Simplify Chinese
Single image display, support AHD/CVBS Camera
Built-in Parking lines adjustment, adjusting according to the vehicle width
Automatically switch to V2 when reversing
With Removable Sunshade design, With Metal U Shape Bracket
Built-in lightning protection device; Monitor with reverse polarity protects;
Built-in Speaker(optional)
Material: ABS
View Angle: Hor. L(180) R(180) Ver. UP(180) DOWN(180)
Storage temperature: --30°C ~80°C
Working temperature:-20°C ~ 70°C
Power consumption: 5W
Size: 180x121x26mm

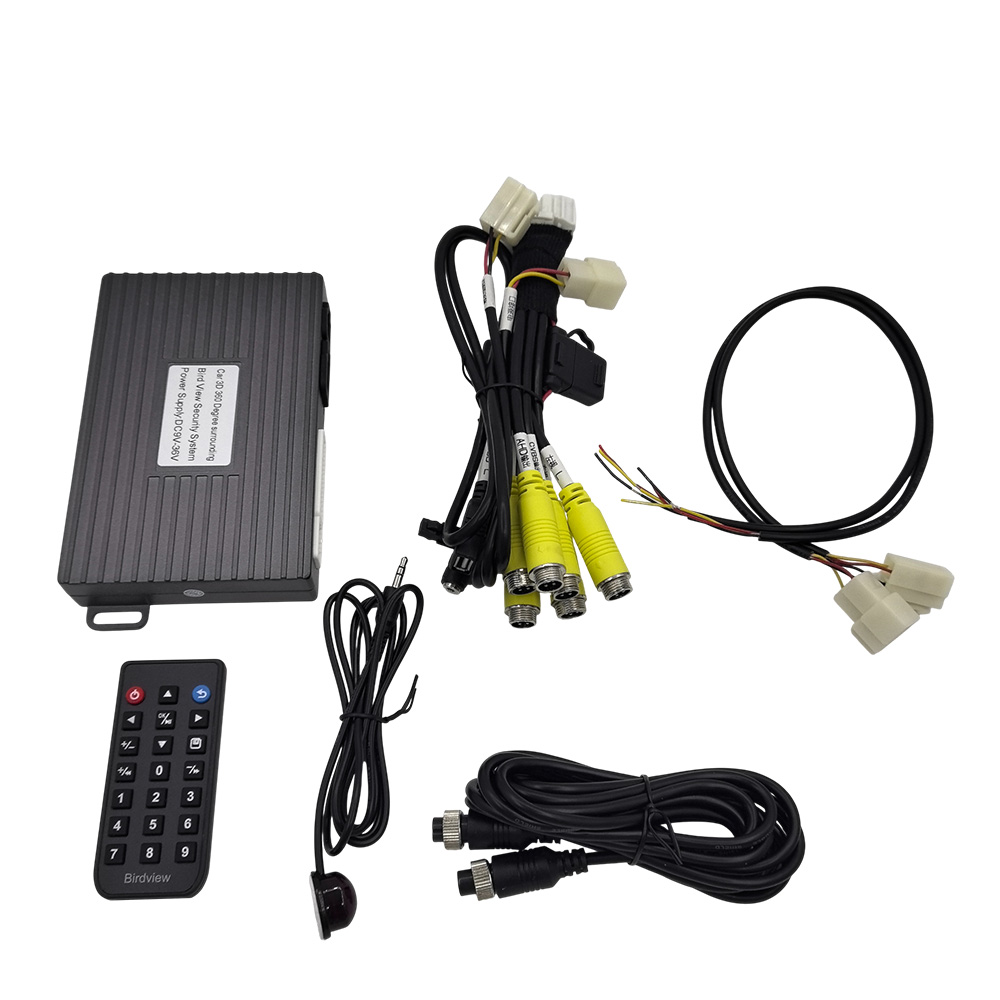

Accessories: Remote controller, Power supply cable, User manual, Bracket
Connector: 4-Pin Connector/RCA Connector optional
Support 4pcs AHD 1080P Cameras
Including 3pcs 5m cable and 1pc 15m cable
Giftbox or White box Package
Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
