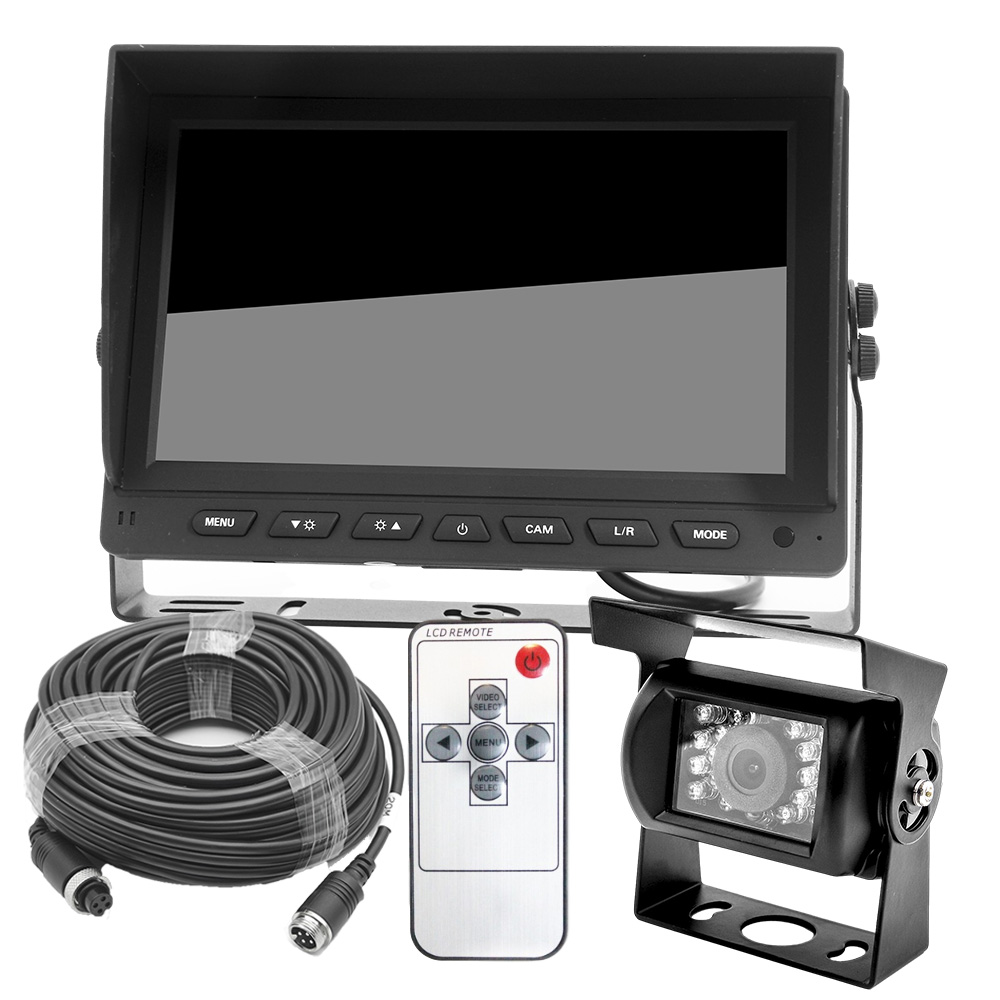

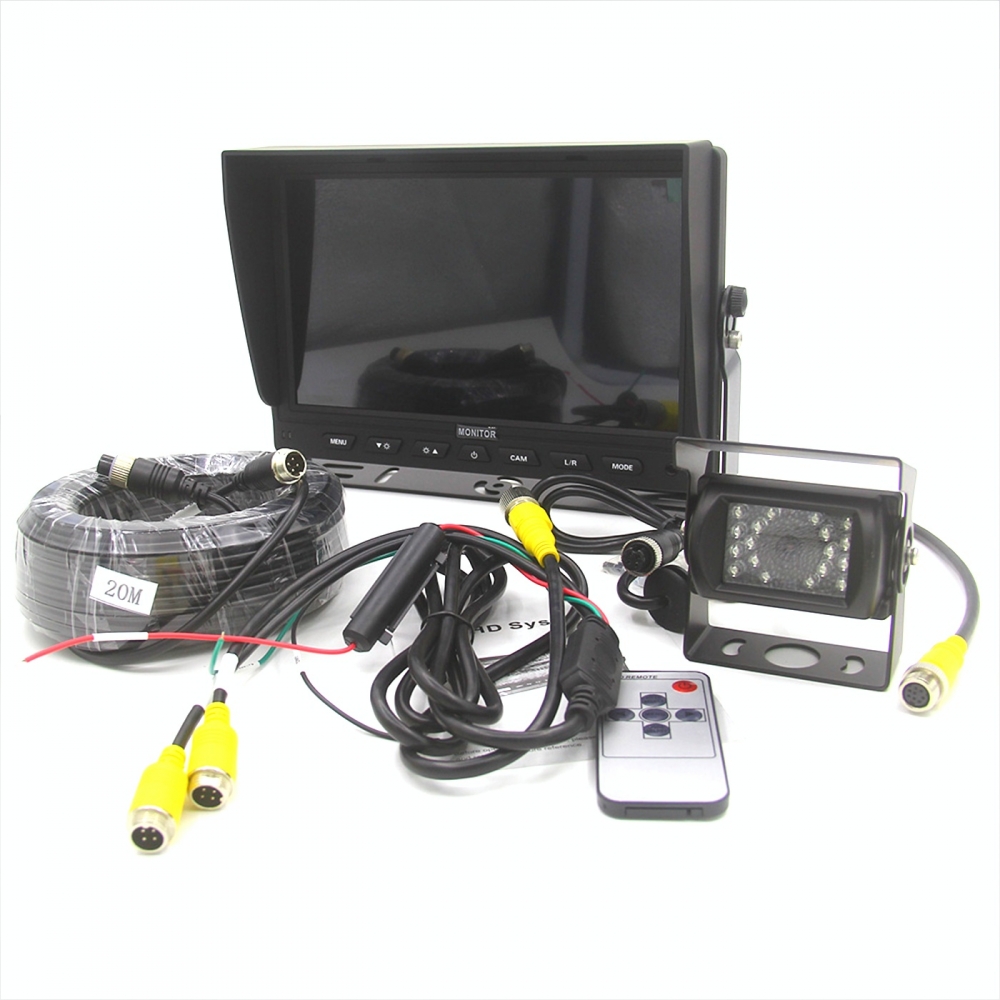

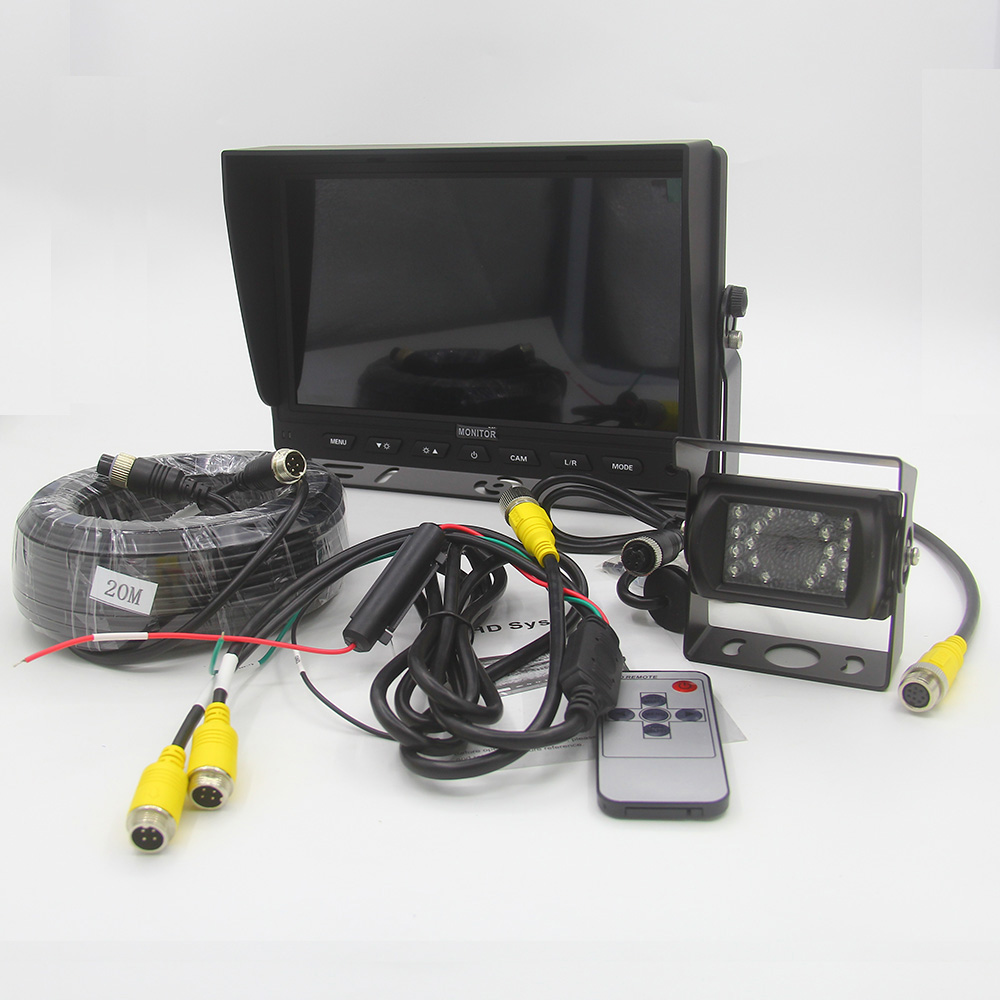

DC12-36V 9 Inch AHD 1080P Reversing Video System

RVM-9003AHD Specification

Monitor Specification:
9 inch AHD Car Monitor with IPS Screen
Aspect ratio: 16:9 Wide Screen
High Resolution:1024*600
Back Light luminance: 500cd/m2
2 way AHD video inputs
Support AHD/CVBS Camera
Power Supply: Input Power: DC12V-36V, Output Power: DC12V
System: NTSC & PAL (automatically)
OSD Language:English, Chinese
Built-in Parking lines adjustment, adjusting according to the vehicle width

Built-in light sensor, adjustment screen brightness automatically

Automatically switch to V2 when reversing
With Removable Sunshade design, With Metal U Shape Bracket
Built-in lightning protection device; Monitor with reverse polarity protection;
Built-in Speaker
Material: ABS
View Angle: Hor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)

Storage temperature: -30°C ~80°C
Working temperature:-20°C ~ 70°C
Power consumption: 5W
Size: 230x155x29mm
Accessories: Remote controller, Power supply cable, User manual, Bracket
Connector: 4-Pin Connector

DC12V Truck AHD Rear Camera

1/3" AHD CMOS,1080P,200W,0.01Lux/F1.2,PAL, 120°,DC12V

Waterproof IP68, IR Night Vision

Aluminum alloy shell, outside hanging design

20M extend cable with 4 PIN lock connector

Emark Certification is available
