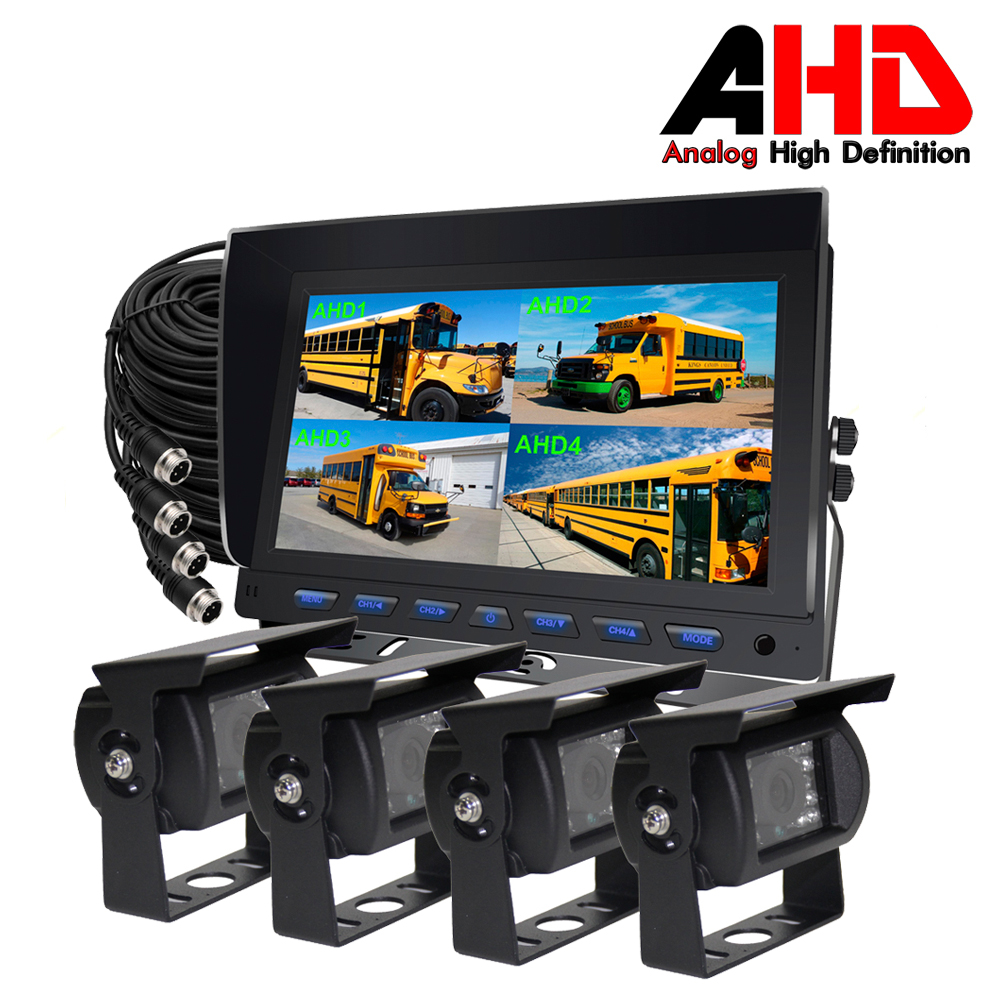

DC12V&36V 9 Inch AHD QUAD REAR VIEW BACKUP CAMERA SYSTEM

RVM-9003QAHD Features:

Monitor Specification:

9 inch AHD Car Quad Monitor with IPS Screen
Aspect ratio: 16:9 Wide Screen
High Resolution:1024*600
Back Light luminance: 500cd/m2
4 way AHD video input

4 ways Trigger function,Trigger priority:CH2>CH1>CH3>CH4

Support 4pcs AHD/CVBS cameras video simultaneous input,1/2/3/4 image display adjustable
The monitor can be set as four kinds of view modes: single, dual, triple or quad.
Power Supply: Input Power: DC12V-36V, Output Power: DC12V
System: NTSC & PAL (automatically)
OSD Language: English, Chinese
Built-in light sensor, adjustment screen brightness automatically

With UN-Removable Sunshade design, With Metal U Shape Bracket
Built-in Speaker
Material: ABS
View Angle: Hor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)

Storage temperature: -30°C ~80°C
Working temperature:-20°C ~ 70°C
Power consumption: 5W
Size: 230x155x27mm
Accessories: Remote controller, Power supply cable, User manual, Bracket
Connector: 4-Pin Connector/RCA Connector optional

DC12V Truck AHD Rear Camera

1/3" AHD CMOS,1080P,200W,0.01Lux/F1.2,PAL, 120°,DC12V

Waterproof IP68, IR Night Vision

Aluminum alloy shell, outside hanging design

Extend cable with 4 PIN lock connector

Including 1pcs 9 inch ahd quad  Monitor+1pc 1080P front view camera+3pc 1080P back camera+3pcs 5m cable+1pc 20m cable
