5 Inch AHD 800x480 Backup Camera Monitor 5 Inch AHD 800x480 Backup Camera Monitor
Name:5 Inch AHD 800x480 Backup Camera Monitor
Model No.:FA-506AHD
Screen Size:5 Inch AHD 800x480 Backup Camera Monitor
Aspect Ratio:16:9
Resolution:800x480
Video Input:2 way AHD video input
Speaker:Built-in
System:PAL& NTSC(auto)
Remote Control:Yes
Power Supply:Input Power: DC12V-36V, Output Power: DC12V
Bracket:U Shape Bracket
Connector:RCA or 4-PIN
Warranty:1 Year

Key Features:


5 Inch AHD 800x480 Backup Camera Monitor

FA-506AHD Features:

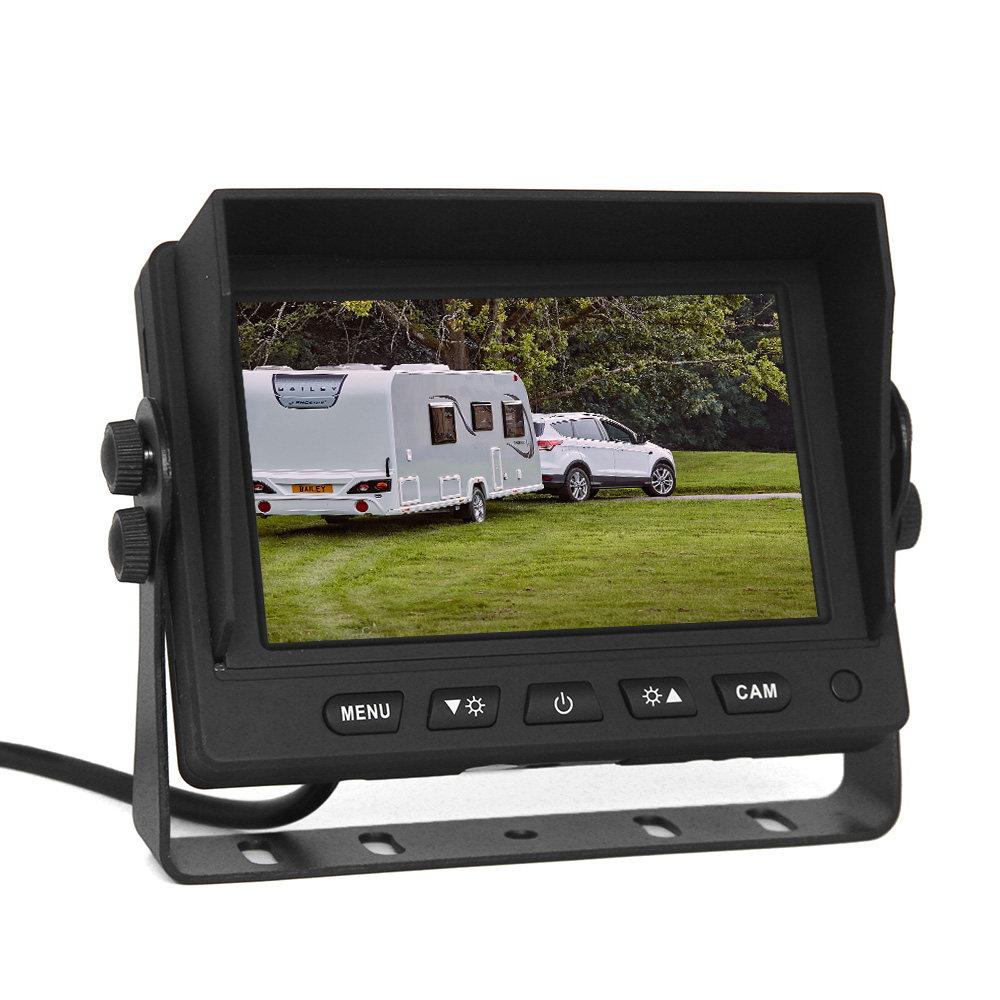

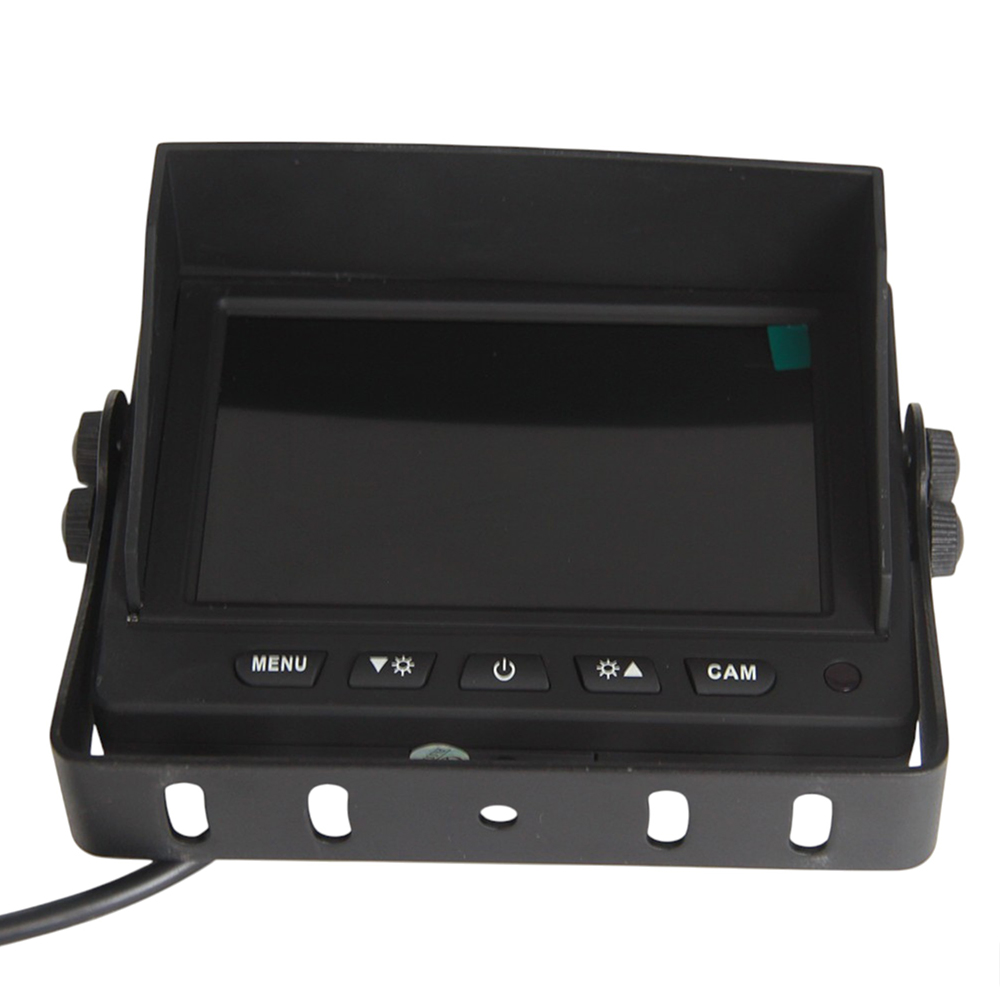

The 5 Inch AHD 800x480 Backup Camera Monitor with removable sunshade

Mounts to the dashboard with ease

Support 2 camera inputs, and switch to view CH1/CH2 display.

This monitor has audio functionality

Power Operation Voltage: DC12-24 volts

Suitable for 4WDs, Motorhomes, Horse Trailers, Trucks, Buses & Heavy Machinery etc.


Car Monitor (FA-506AHD)
Color LCD screen5-inch IPS screen, with removable sunshade
Resolution800xRGBx480
Aspect ratio16:9 Wide Screen
Brightness(cd/m2)500cd/m2
Video input2-way video input(3 ways optional), Video Compatibility: CVBS/ AHD
Picture modeSingle Image Display
Color systemPAL/NTSC (AUTO)
OSD Language

English, Chinese

SpeakerBuilt-in
View AngleHor. L(70°) R(70°)  Ver. UP(70°) DOWN(70°)
Parking LineBuilt-in Parking lines adjustment, adjusting according to the vehicle width
Working voltageInput Power: DC12V-36V, Output Power: DC12V
Power consumption5W
Working temperature-20ºC to +70ºC
Storage temperature-30ºC to +80ºC
Built-in light sensorAdjust the screen brightness automatically
Dimensions140x102x26mm
Others

Built-in lightning protection device; Monitor with reverse polarity protects.

Automatically switch to V2 when reversing.

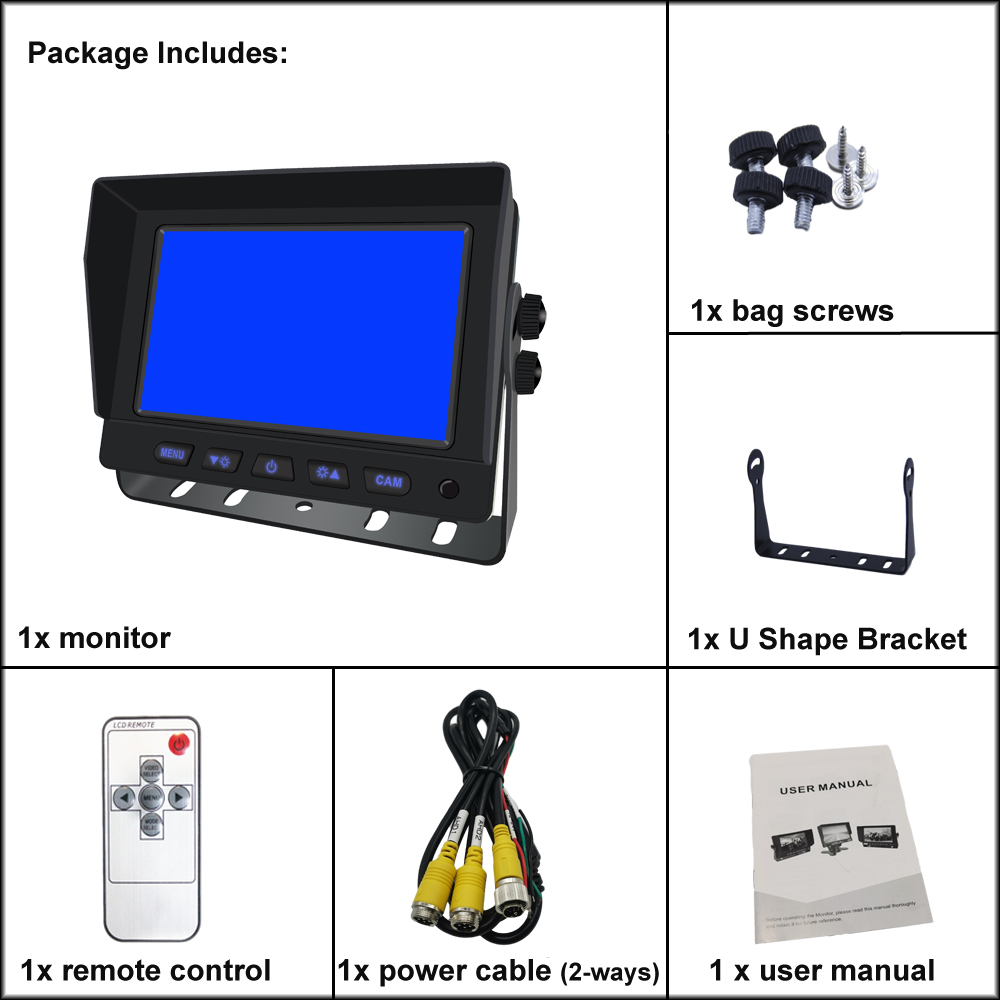

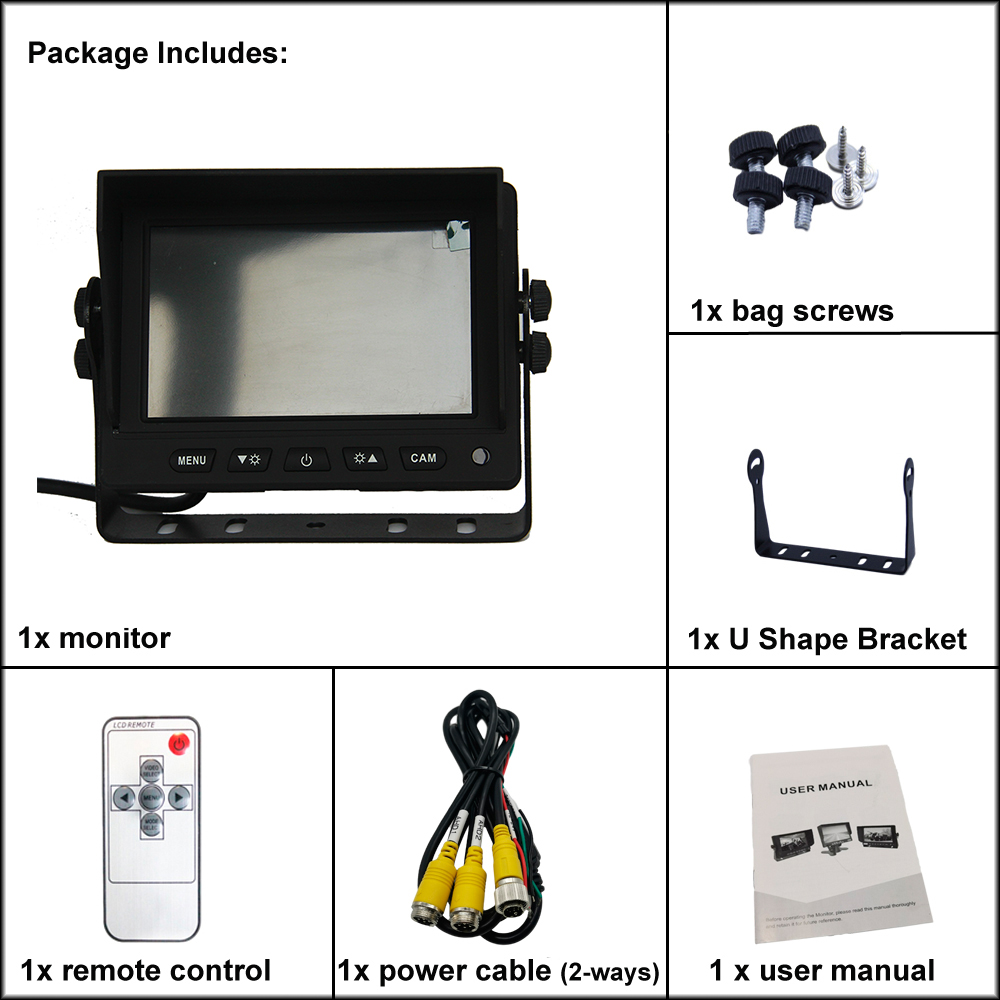

AccessoriesRemote controller, Power supply cable, User manual, U Shape Bracket






Hits: 【Print】
Pre:9-Inch AHD RearView Reverse Monitor     Next:Universal carplay ai box

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
