DC12-36V 7 DC12-36V 7 DC12-36V 7 DC12-36V 7
Name:DC12-36V 7" Waterproof 1080p AHD 4-Channel monitor
Model No.:FA-703QAHD
Screen Size:7" Waterproof 1080p AHD 4-Channel monitor
Aspect Ratio:16:9
Resolution:1024xRGBx600
Video Input:4 Way Input
Speaker:No
System:PAL& NTSC(auto)
Remote Control:Yes
Power Supply:Input Power: DC DC12V-36V, Output Power: DC12V

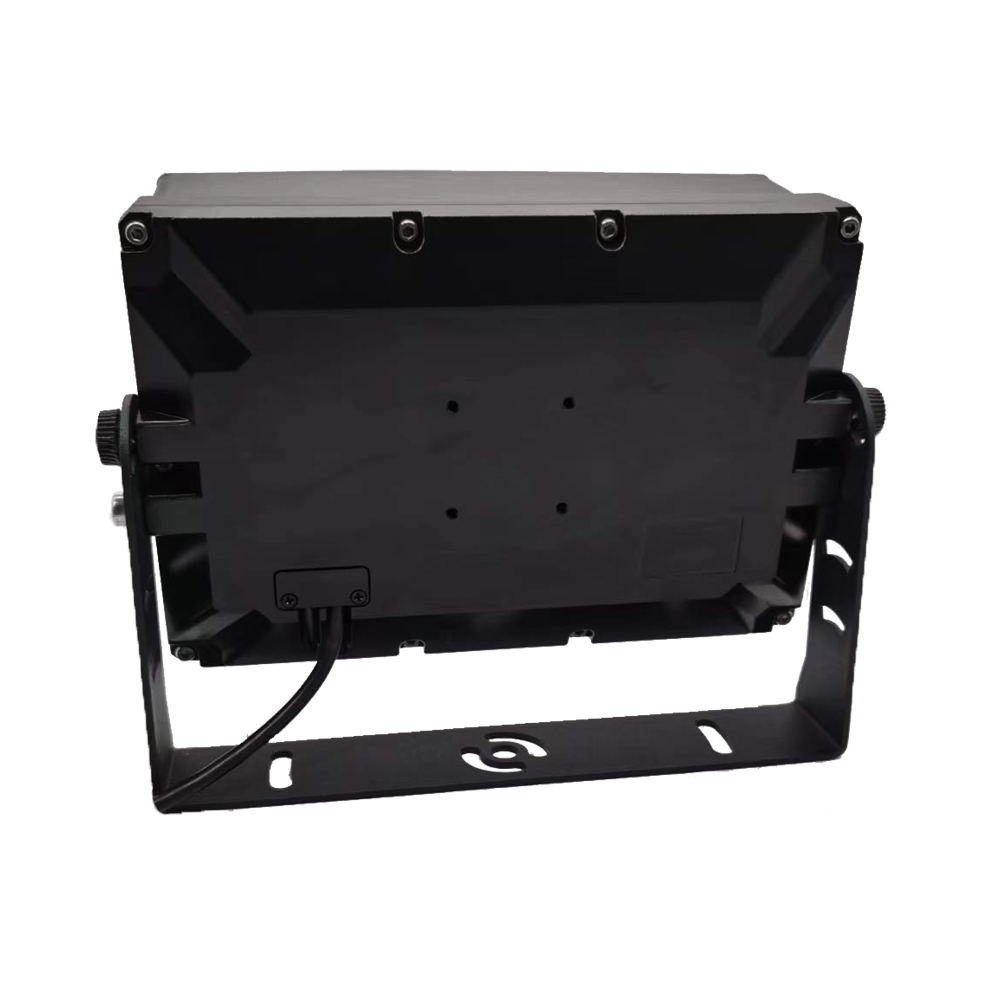

Bracket:U Shape Braket
Trigger:4Ways
Dustproof/Waterproof level:IP69K
Shock Resistance:5.9G

Key Features:


DC12-36V 7" Waterproof 1080p AHD 4-Channel monitor

FA-703QAHD Features:

The 7" Waterproof 1080p AHD 4-Channel monitor with removable sunshade

Mounts to the dashboard with ease

Support 4 camera inputs, and display 1 to 4 cameras simultaneously

This monitor doesn't have audio functionality

Power Operation Voltage: DC12-24 volts

Suitable for 4WDs, Motorhomes, Horse Trailers, Trucks, Buses & Heavy Machinery etc.


Car Monitor (FA-703QAHD)
Color LCD screen7-inch IPS screen, with removable sunshade
Resolution1024xRGBx600
Aspect ratio16:9 Wide Screen
Brightness(cd/m2)500cd/m2
Video input4-way video input, Video Compatibility: CVBS/ AHD

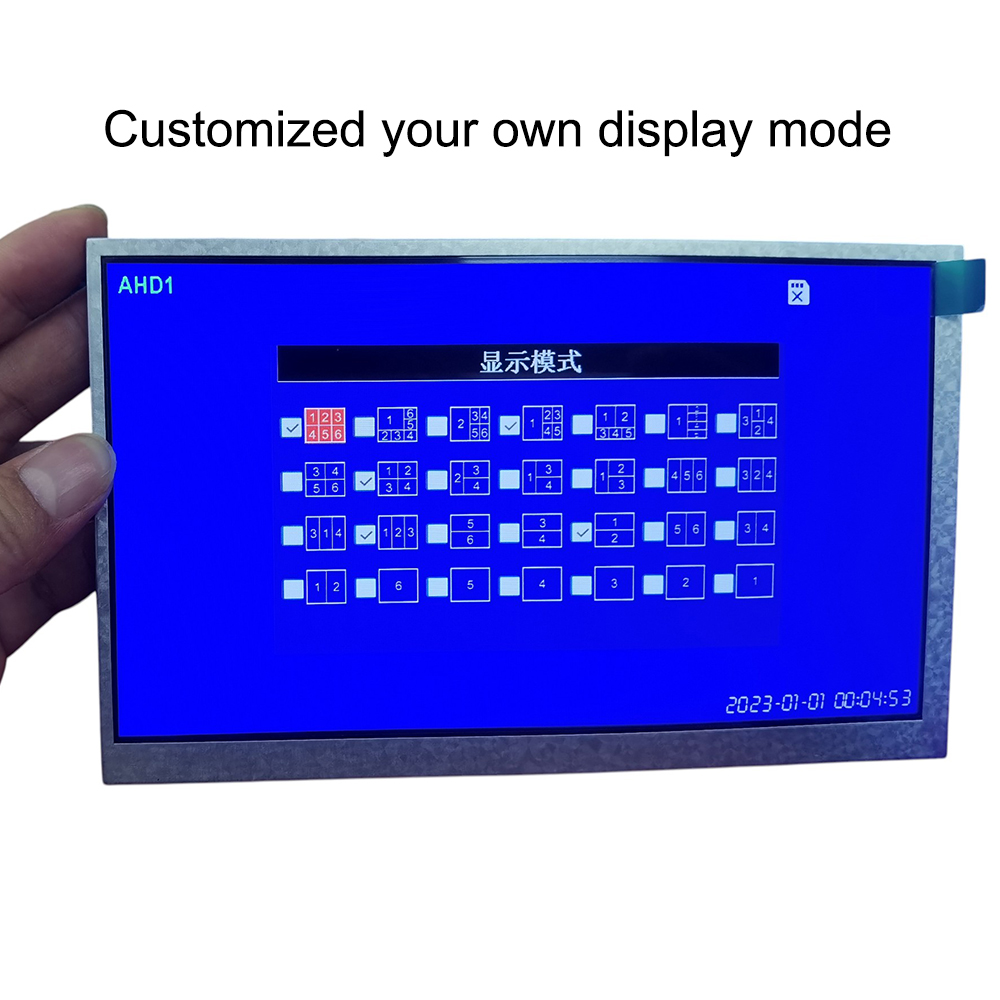

Picture modeThe monitor can be set in four kinds of view modes: single, dual, triple, or quad.
Trigger4 ways Trigger function, Trigger priority: CH2>CH1>CH3>CH4
Color systemPAL/NTSC (AUTO)
OSD Language

English, Chinese

SpeakerNo
Dustproof & Waterproof levelIP69K
Shock Resistance5.9G
View AngleHor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)
Parking LineBuilt-in Parking lines adjustment, adjusting according to the vehicle width
Working voltageInput Power: DC12V-36V, Output Power: DC12V
Power consumption5W
MaterialMetal
Working temperature-20ºC to +70ºC
Storage temperature-30ºC to +80ºC
Built-in light sensorAdjust the screen brightness automatically
Dimensions188x127.2x34mm
Others

Built-in lightning protection device; Monitor with reverse polarity protects.

Automatically switch to V2 when reversing.

Four channels adjust the image flip in left, right, upper, and lower independently

AccessoriesRemote controller, Power supply cable, User manual, U Shape Bracket
