DC12V&36V 9 Inch Truck Quad Display Reverse Camera Kit

Monitor Specification:
9 Inch Car Quad Monitor
Aspect ratio: 16:9 Wide Screen
High Resolution:800xRGBx480 (1024X600 IPS HD Screen optional)
Back Light luminance: 350cd/m2
4 way video inputs
4 ways Trigger function, Trigger priority:CH2>CH1>CH3>CH4
Support 4 cameras video simultaneous input
Power Supply: Input Power: DC12V-36V, Output Power: DC12V
System: NTSC & PAL (automatically)
OSD Language: English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese
Image reversion：UP/Down and Left/Right
Monitor can be set as four kinds of view modes: single, dual, triple or quad.
With UN-Removable Sunshade design, With Metal U Shape Bracket
Built-in Speaker(optional)
Material: ABS
View Angle: Hor. L(70) R(70)  Ver. UP(50) DOWN(70)
Storage temperature: -30°C ~80°C
Working temperature:-20°C ~ 70°C
Power consumption: 5W
Size: 230x155x27mm
Accessories: Remote controller, Power supply cable, User manual, Bracket
Connector: 4-Pin Connector/RCA Connector optional
4PCS Rear View Camera Specification:
Image Sensor: Sharp CCD
Horizontal Resolution: 480TV Line
Mini illumination: 0.01Lux,IR Night vision
View Angle: 120°
System: PAL or NTSC
Voltage: DC12V
Waterproof range: IP68
Shell material: Aluminum Alloy

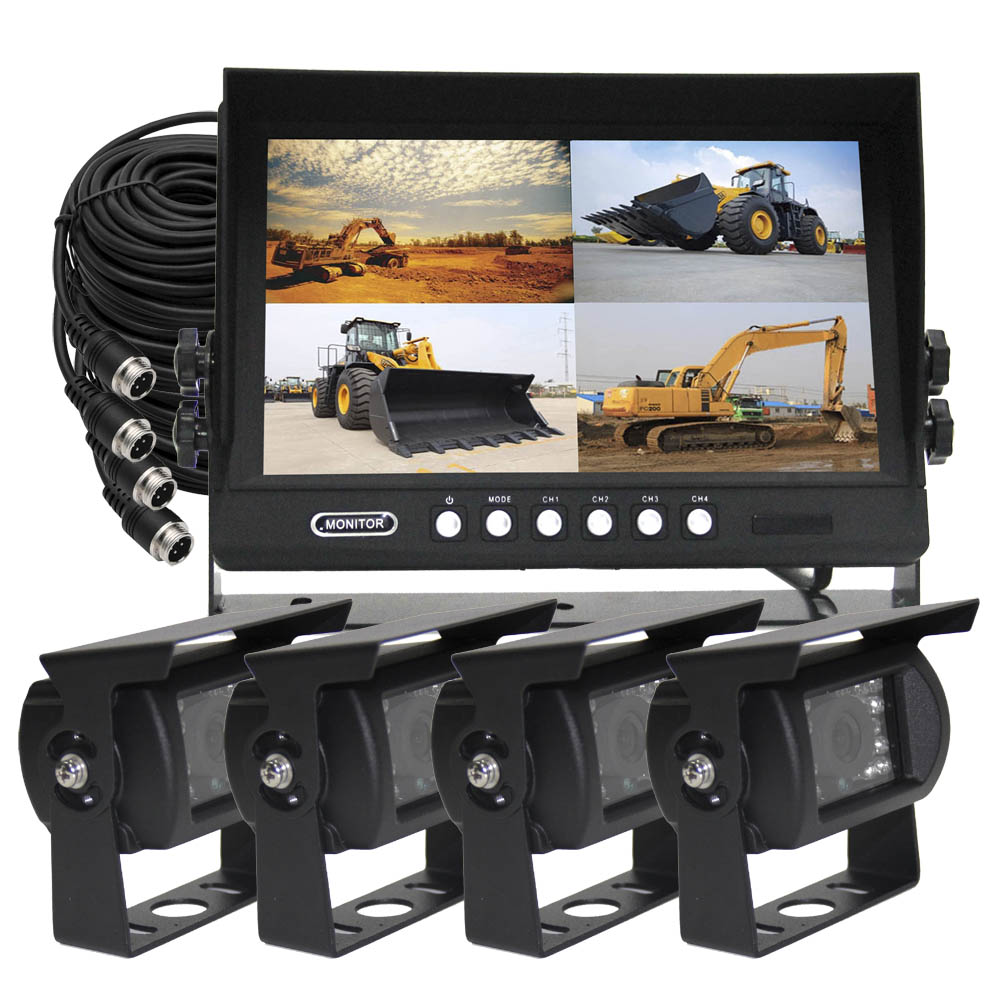

Including 1pc 9 inch car quad monitor+1pc front camera+3pcs Back Camera+3pcs 5m cable+1pc 20m cable
