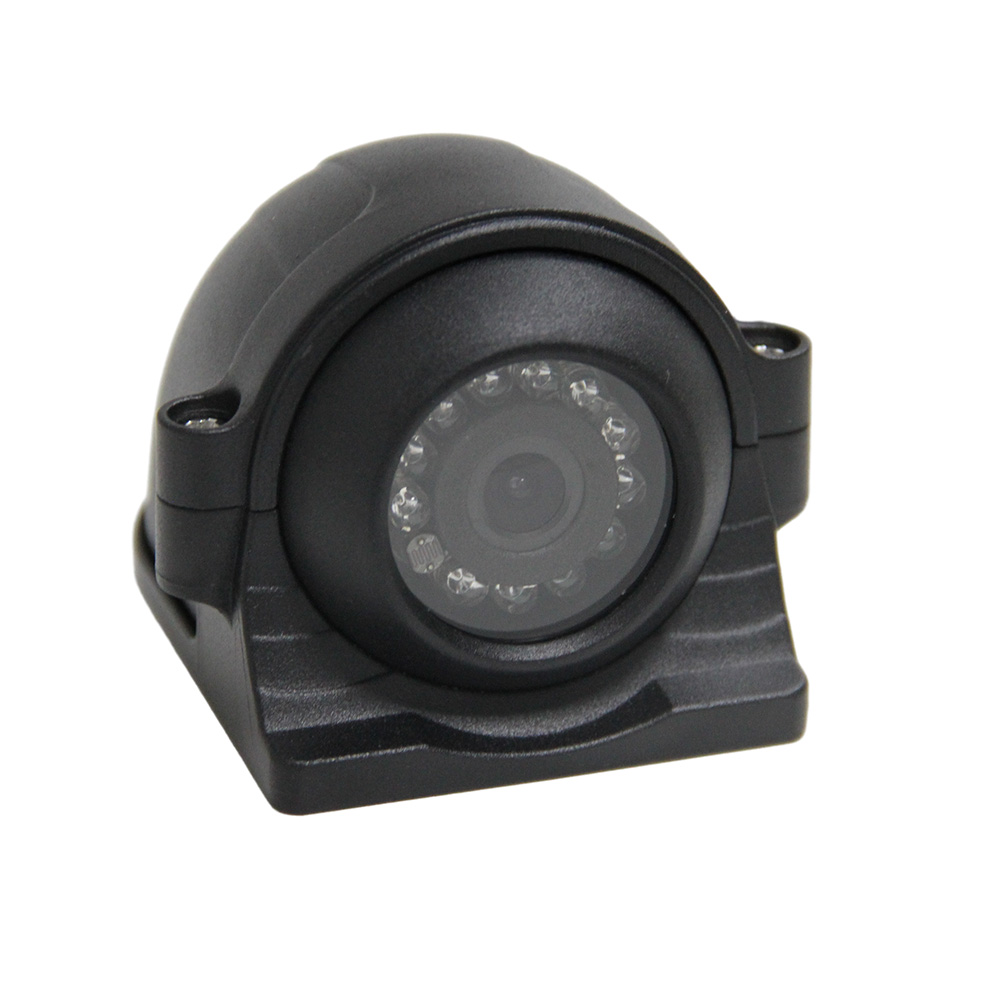

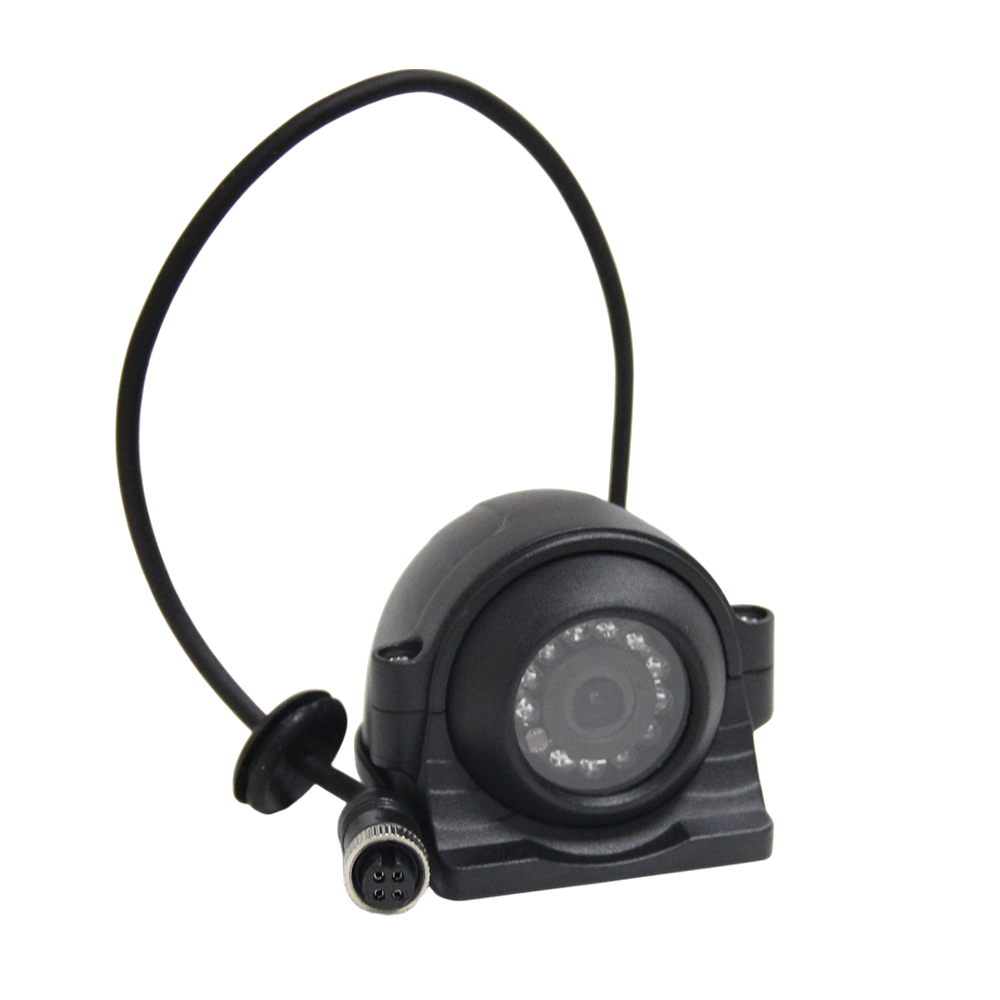

Bus Side View Camera

Model No.:CA-109
Sensor:1/3 Sony CCD
TV Line:480TVL
Resolution:PAL:582(H)510(V) NTSC: 510(H)492(V)
Min illumination:0.01Lux (0 Lux IR on)
IR LED:12pcs
Night Vision Distance:about 5M
Waterproof:IP68
View Angle:120°
Lens:2.8mm
Power Voltage:DC12V or DC12V-24V
Size:75X60X90mm
Material:Metal Case Vandalproof

CA-109 is a heavy duty Sony CCD Side camera suitable for caravans, trucks, buses and commercial use vehicles.

Image Sensor

1/4 420TVL CMOS (PC7070)

1/3 480TVL SONY CCD

Video System

                    PAL/NTSC

PAL/NTSC

Lens

                 2.5mm

                   2.8mm

Pixels

648(H)*488(V)

PAL:582(H)*510(V)

NTSC:510(H)*492(V)

Horizontal Resolution

420 TVL

480 TVL

Min Illumination

0.1Lux (0 Lux IR on)

0.01Lux (0 Lux IR on)

SNR

46dB

48dB

Electronic Shutter

1/50-1/10000(S)

1/50-1/10000(S)

Video Output

1.0V±0.5Vp-p 75Ω

1.0V±0.5Vp-p 75Ω

View Angle

120°

120°

Working Voltage

DC12V or DC24V Optional

DC12V or DC24V Optional

Consumption

100mA±10%

70mA±10%

Waterproof Rate

IP68

IP68

Connector

4-Pin or RCA Optional

4-Pin or RCA Optional

Suitable for

caravans, trucks, buses and commercial use vehicles etc

caravans, trucks, buses and commercial use vehicles etc

Microphone

Optional

Optional
