| Name: | 10.1" All-in-One Monitor 360 Panoramic Bird View Backup Camera System |
|---|---|
| Model No.: | RVM-3602 |
| Screen Size: | 10.1 Inch Car Monitor |
| Aspect Ratio: | 16:9 |
| Resolution: | 1024xRGBx600 |
| Video Input: | 4 way AHD video input |
| Speaker: | Optional |
| System: | PAL& NTSC |
| Remote Control: | Yes |
| Power Supply: | Input Power: DC12V-36V, Output Power: DC12V |
| Bracket: | U Shape Bracket |
| Connector: | RCA or 4-PIN |
| Camera: | 4pcs AHD 1080P Camera |
| Warranty: | 1 Year |

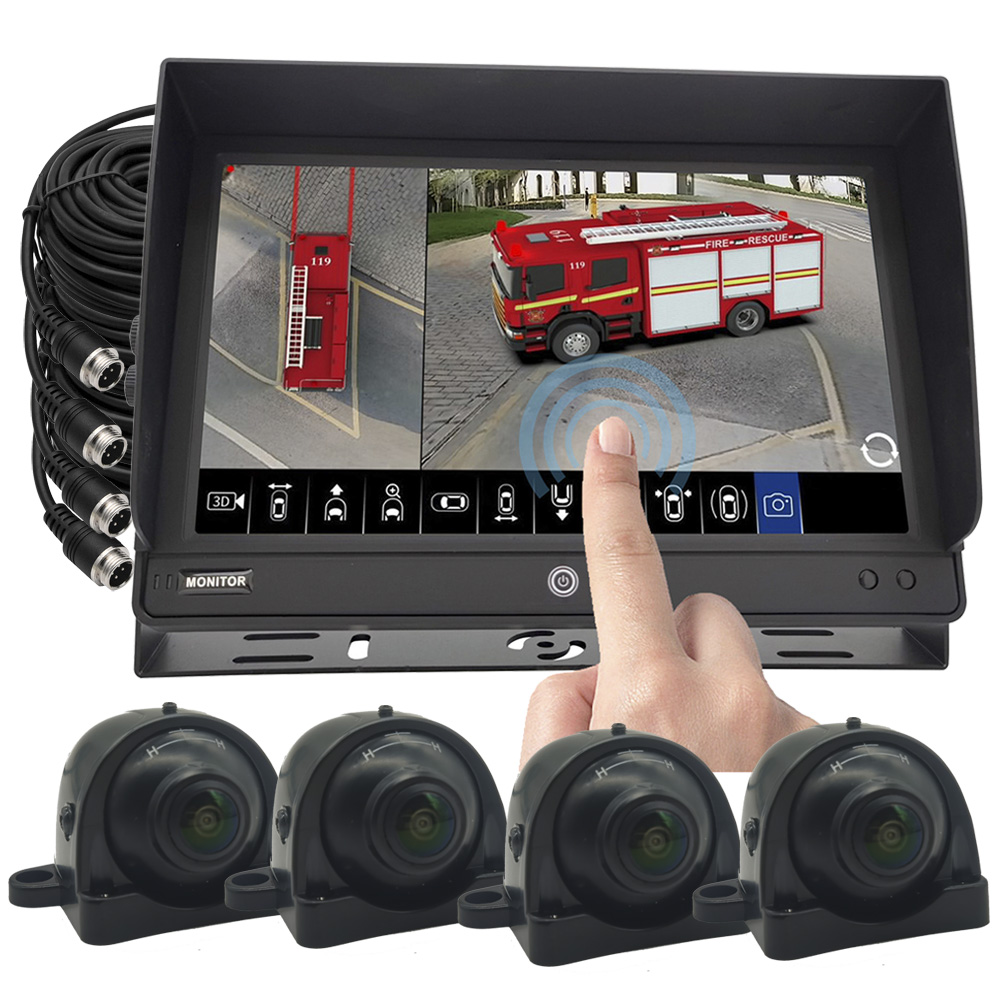

DC12V-36V 10.1" All-in-One Monitor 360 Panoramic Bird View Backup Camera System
RVM-3602 Specifications:
10.1inch AHD Car Monitor with IPS Screen
Operating System: Embedded LINUX system
Internal Storage: DDR4 1GB
LVDS video output: Suppo 1920*720 output
Audio and video Compression standard: H.264
Storage: SD high speed card, Max. Supoort 256GB
Built in EMMC Storage( without is the system with time stamp)
Aspect ratio: 16:9 Wide Screen
High Resolution:1024*R.G.B.*600
Back Light luminance: 700cd/m2
4 ways AHD video input
Power Supply: Input Power: DC10V-36V, Output Power: DC12V
System: NTSC & PAL (automatically)
OSD Language: English, Simplify Chinese
Built-in Parking lines adjustment, adjusting according to the vehicle width
With Removable Sunshade design, With Metal U Shape Bracket
Built-in lightning protection device; Monitor with reverse polarity protects;
Built-in Speaker
Material: ABS
View angle: Hor. L(85°) R(85°) Ver. UP(85°) DOWN(85°)
Storage temperature: --30°C ~80°C
Working temperature:-20°C ~ 70°C
Power consumption: 5W

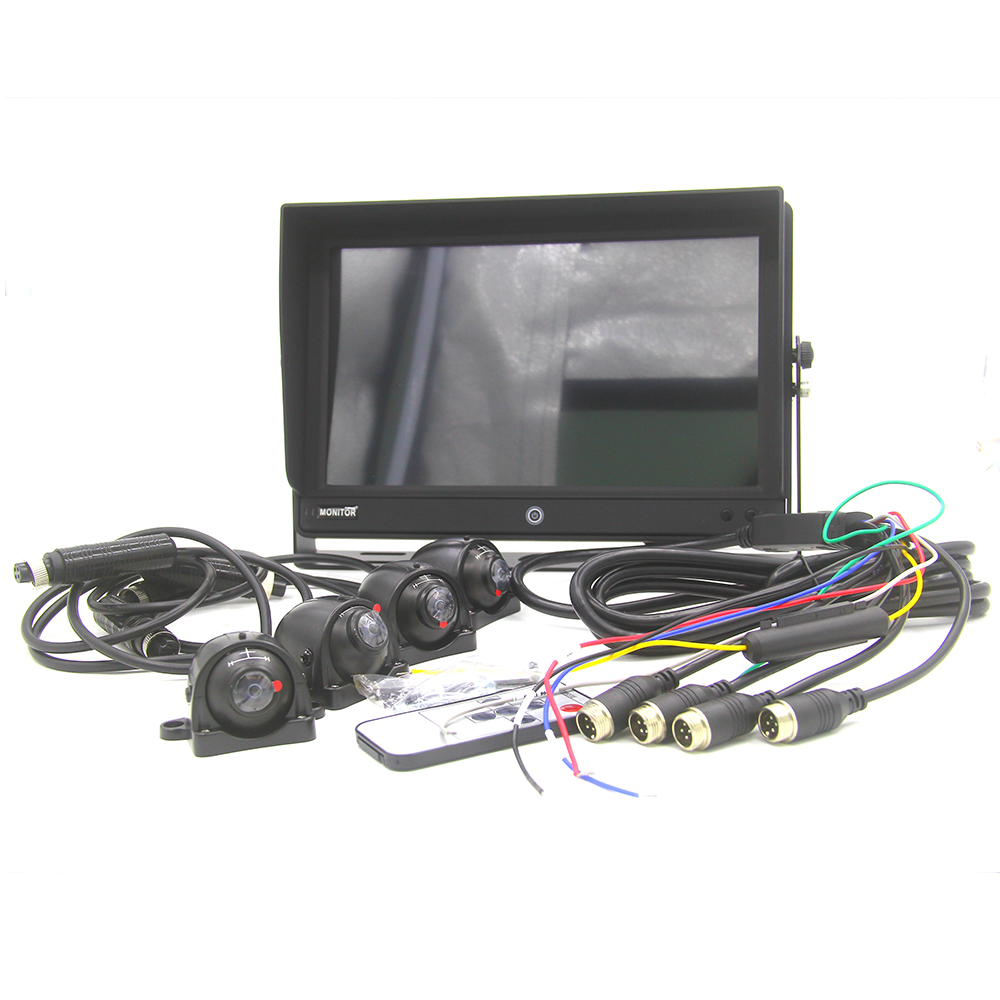

Accessories: Remote controller, Power supply cable, User manual, Bracket
Connector: 4-Pin Connector
Built-in AI Function (optional)
Pedestrian Voice Flashing Alerting(Optional)
DC12V Truck AHD Rear Camera
1/3” 2053 AHD CMOS,1080P,200W,210°view angle,DC12V
Waterproof IP68, IR Night Vision
Aluminum alloy shell, outside hanging design
Extend cable with 4 PIN lock connector
Including 3pcs 5m cable and 1pc 15m cable
Giftbox or White box Package
Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
