10.1 Inch AHD LCD TFT Color Split Monitor
Name:10.1 Inch AHD LCD TFT Color Split Monitor
Model No.:FA-1002TA
Screen Size:10.1 Inch AHD LCD TFT Color Split Monitor
Aspect Ratio:16:9
Resolution:1024xR.G.Bx600
Video Input:2 Way Input
Speaker:Built-in
System:PAL& NTSC(auto)
Remote Control:Yes
Power Supply:Input Power: DC12V-36V, Output Power: DC12V
Bracket:U Shape Braket
Dimension:257x170x33mm
Memory interface:optional
Warranty:1 Year

Key Features:


DC12V&36V 10.1 Inch AHD LCD TFT Color Split Monitor

FA-1002TA Features:

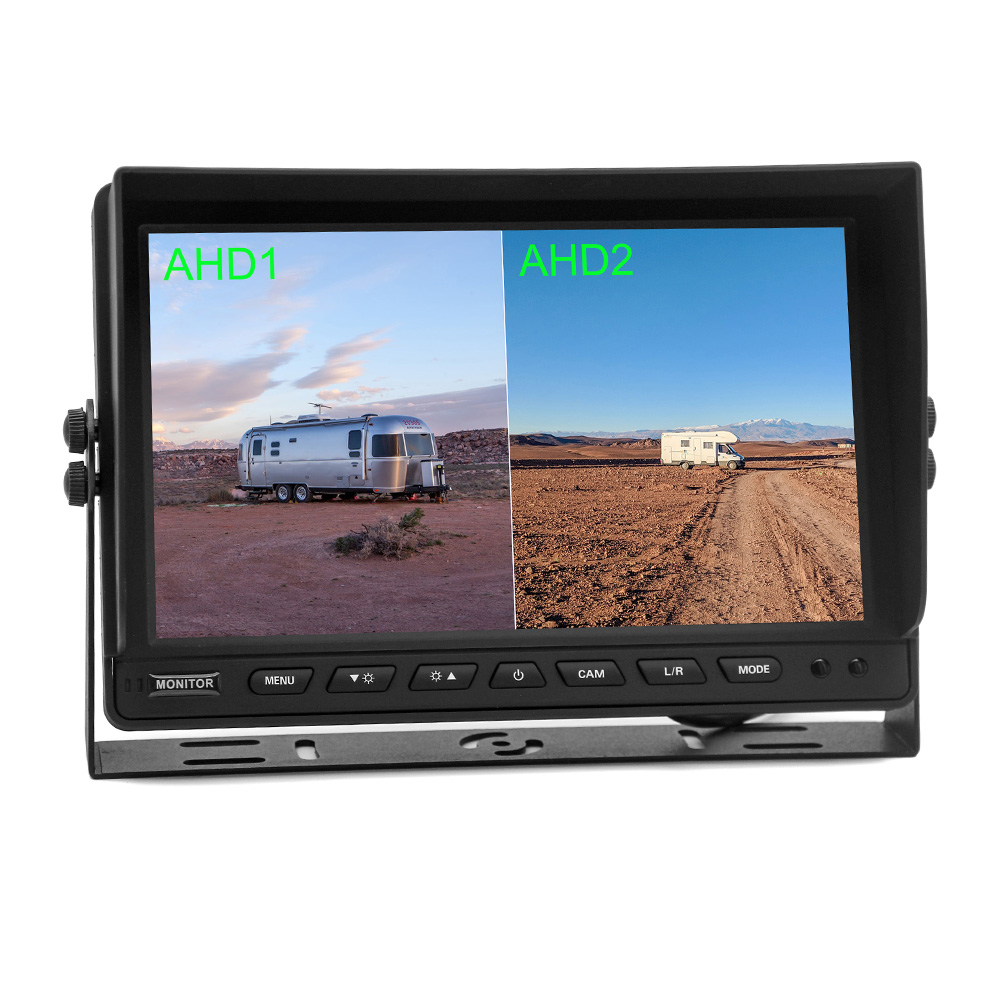

The 10.1 Inch AHD LCD TFT Color Split Monitor with removable sunshade

Mounts to the dashboard with ease

Support two camera inputs, and display 1 to 2 cameras simultaneously

This monitor has audio functionality

Power Operation Voltage: DC12-24 volts

Suitable for 4WDs, Motorhomes, Horse Trailers, Trucks, buses, and heavy machinery etc.


Car Monitor (FA-1002TA)
Color LCD screen10.1-inch IPS screen, with removable sunshade
Resolution1024xRGBx600
Aspect ratio16:9 Wide Screen
Brightness(cd/m2)500cd/m2
Video input2-way video input, Video Compatibility: CVBS/ AHD
Picture modeThe monitor can be set in two kinds of view modes: single and dual.
Trigger2 ways Trigger function, Trigger priority: CH2>CH1
Color systemPAL/NTSC (AUTO)
OSD Language

English, Chinese

SpeakerBuilt-in
View AngleHor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)
Parking LineBuilt-in Parking lines adjustment, adjusting according to the vehicle width
Working voltageInput Power: DC12V-36V, Output Power: DC12V
Power consumption5W
Working temperature-20ºC to +70ºC
Storage temperature-30ºC to +80ºC
Built-in light sensorAdjust the screen brightness automatically
Dimensions257*170*33mm
Others

Built-in lightning protection device; Monitor with reverse polarity protects.

Automatically switch to V2 when reversing.

Two channels adjust the image flip in left, right, upper, and lower independently

AccessoriesRemote controller, Power supply cable, User manual, U Shape Bracket
DVR FunctionOptional







Hits: 【Print】
Pre:7” Single View Vehicle Monitor     Next:10.1 Inch AHD 1080P 8CH Recording LCD Monitor

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
