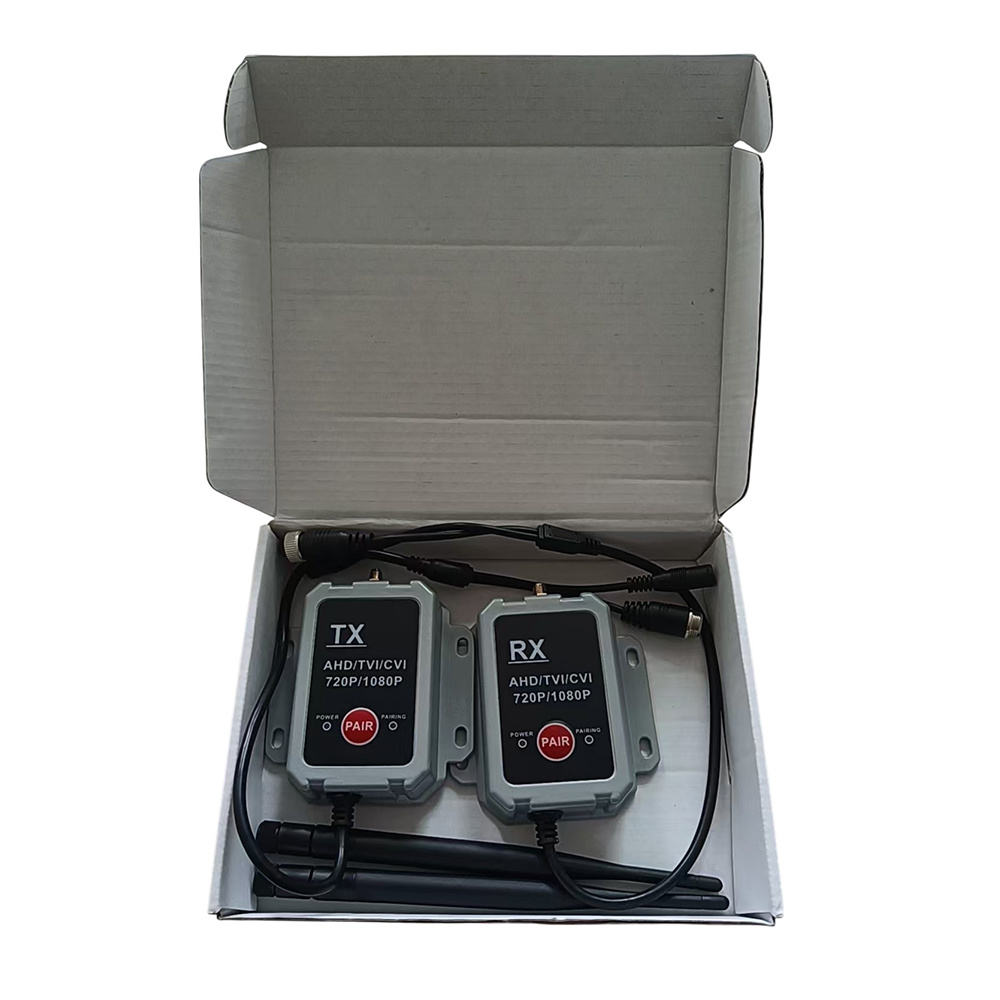

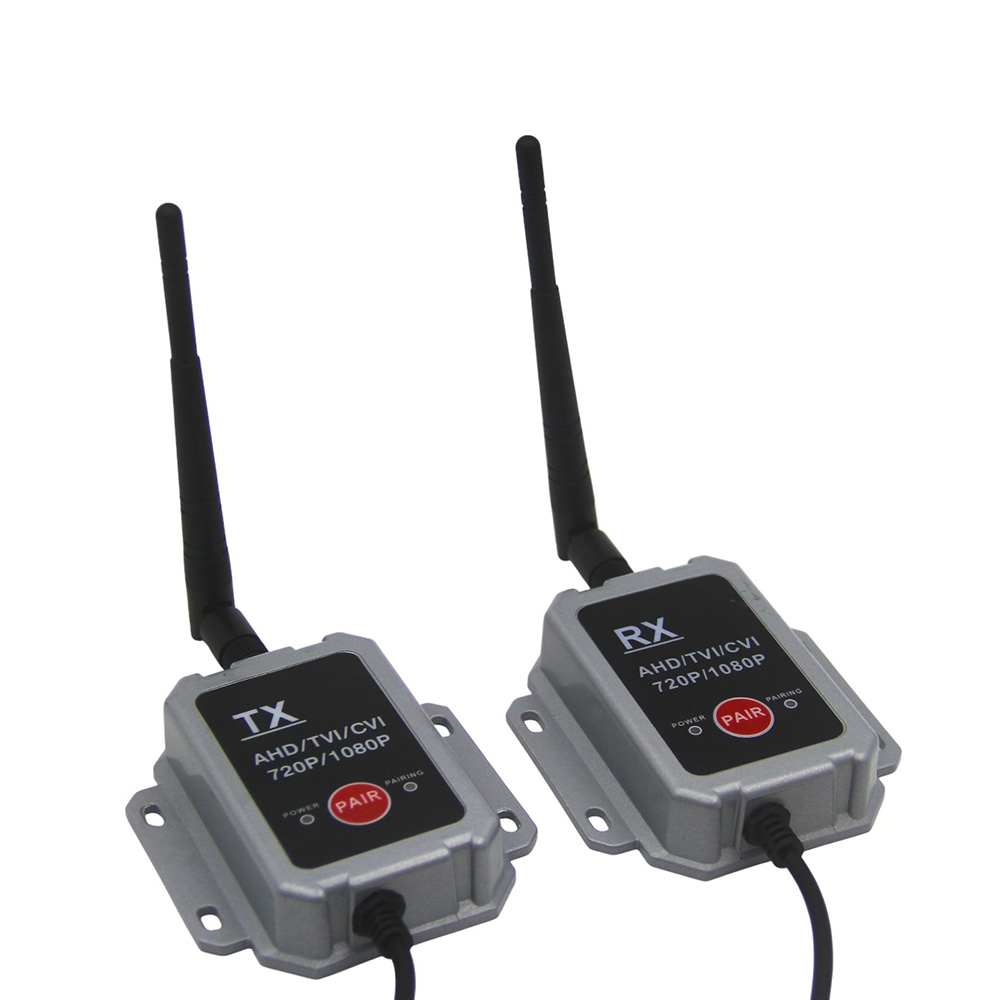

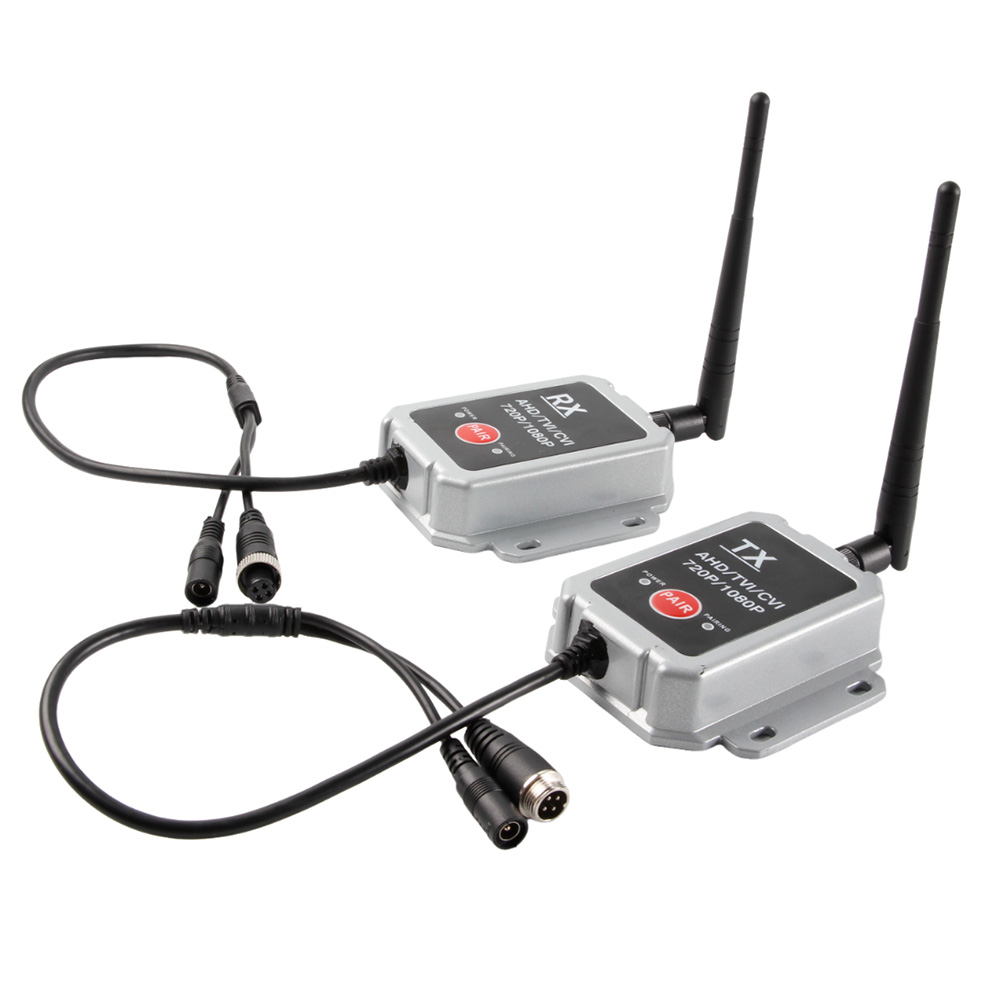

4-PIN AHD Digital Wireless Transmitter and Receiver for car reverse camera kits 4-PIN AHD Digital Wireless Transmitter and Receiver for car reverse camera kits
Name:4-PIN AHD Digital Wireless Transmitter and Receiver for car reverse camera kits
Model No.:FA-W3
Working voltage:DC12-36V
High Resolution:720P,1080P
Wireless Signal Range:Over 1500Meter using 3dBi Ant(in open area)
TV System:NTSC or PAL

Key Features:


4-PIN AHD Digital Wireless Transmitter and Receiver for car reverse camera kits


This Digital Wireless Transmitter and Receiver is generally used for truck AHD Reversing camera kits, please connect the receiver to AHD monitor, and connect the transmitter to AHD rear camera;


Specification:

Working voltage: DC12-36V

Current Consumption: 200 mA Max

Power Consumption: 2.4 Watt Max

RF Output Power: 20dBm

Smart Modulation: 16QAM,QPSK,BPSK

Working Range: Over 1500Meter using 3dBi Ant

High Resolution: 720P, 1080P

Multi Channel: 26ch(NTSC), 76ch(PAL)

One way Audio MP3 or PCM format

Fast Hopping rate: 600

Booting Time: Under 2S

Video Latency: 90-120ms

Video Bit Rate: 1.5~6.0MBPS

TV System: NTSC or PAL

IP Level: IP69

Shock Rating: 100G

Vibration Rating: 10G

Casing Material: Aluminum

Dimension: 65mm(H) x 95mm(V) x 25mm(D)

Length of Cables: Rx:0.3m, Tx:0.3m

RF Output power: 20dBm

Operating Temperature: -40℃~+85℃


Hits: 【Print】
Pre:4 Channel Trailer Coupler - (HEAVY DUTY) WOZA/SUZY COIL Caravan Connection Kit     Next:180°Super Wide Angle Camera

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
