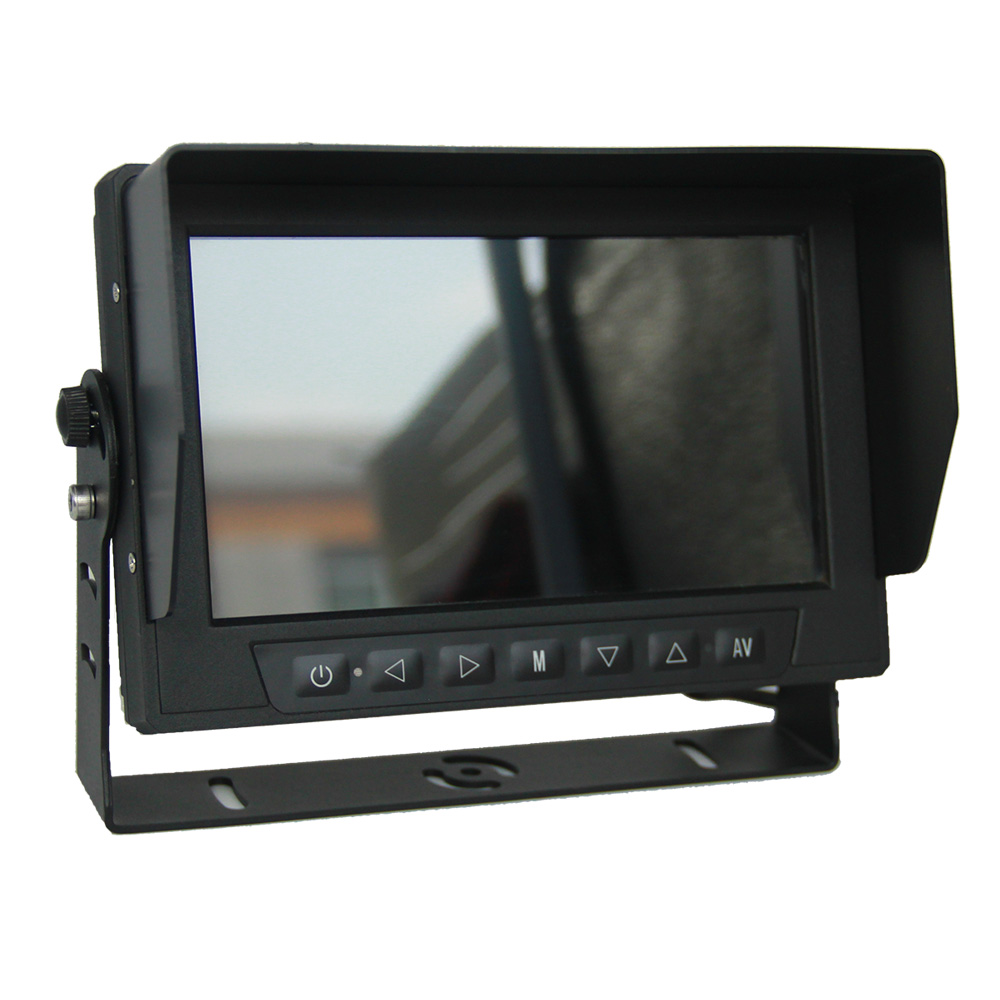

7 inch IP69K Waterproof AHD Monitor 7 inch IP69K Waterproof AHD Monitor
Name:7 inch IP69K Waterproof AHD Monitor
Model No.:FA-703AHD
Screen Size:7 Inch Waterproof Monitor with 2 AV Input
Aspect Ratio:16:9
Resolution:1024xR.G.Bx600
Video Input:3 Way Input
Speaker:No
System:PAL& NTSC
Remote Control:Yes
Power Supply:Input power: DC12V-36V, Output power: DC12V
Bracket:U Shape Braket
Trigger:3Ways
Waterproof Grade:IP69K
Warranty:1 Year

Key Features:


7 inch IP69K Waterproof AHD Monitor

FA-703AHD Specification

7 Inches IP69K waterproof rearview monitor (Detachable sunshade)

Aspect ratio: 16:9 Wide Screen

Back Light Luminance: LED, 500cd/㎡

Resolution: 1024xRGBx600

3 way AHD video input

Single Image Display, Video Compatibility: CVBS/ AHD;

3 Ways trigger :V2>V1>V3(Automatically switch to V2 when reversing)

Dustproof & Waterproof level: IP69K

Built-in light sensor, adjustment screen brightness automatically

Compatible system: NTSC & PAL (automatically)

OSD Language: English, Chinese

View angle: Hor. L(85°) R(85°)   Ver. UP(85°) DOWN(85°)

Power Supply: Input power: DC12V-36V, Output power: DC12V

Power consumption: 5W

Material: Metal

Storage temperature:-30℃ to 80℃

Working temperature:-20℃ to 70℃

Shock Resistance: 5.9G

Product Size:188x127.2x34 mm

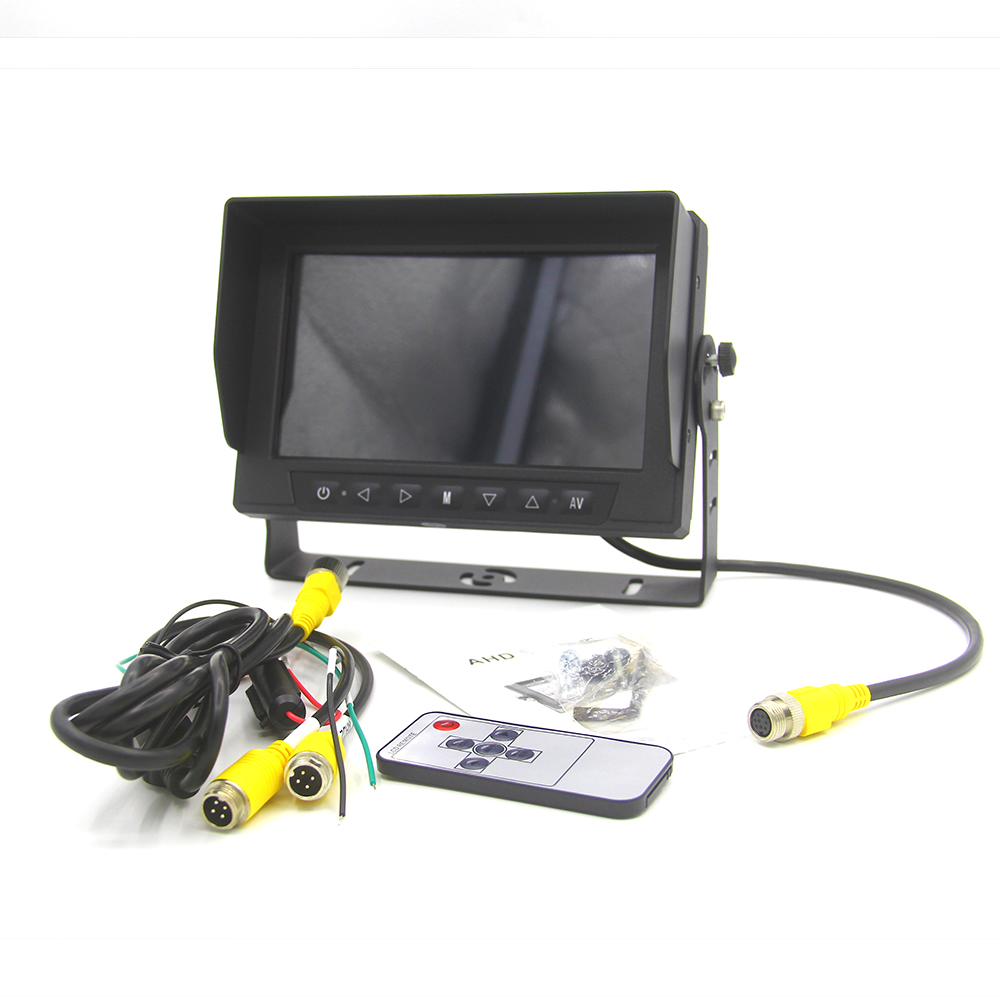

Accessories: Remote controller, Power supply cable, User manual, Bracket

Connector: 4-Pin Connector/RCA Connector optional



Hits: 【Print】
Pre:DAB+ Receiver For Android Navigation     Next:7 Inch Color LCD Backup Monitor

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
