| Name: | 7 inch IP69K Waterproof AHD 1080P Car Monitor |
|---|---|
| Model No.: | FA-703AHD |
| Screen Size: | 7 inch IP69K Waterproof AHD 1080P Car Monitor |
| Aspect Ratio: | 16:9 |
| Resolution: | 1024xR.G.Bx600 |
| Video Input: | 2 Way Input (3 Ways optional) |
| Speaker: | No |
| System: | PAL& NTSC(auto) |
| Remote Control: | Yes |
| Power Supply: | Input power: DC12V-36V, Output power: DC12V |
| Bracket: | U Shape Braket |
| Material: | Metal |
| Waterproof Grade: | IP69K |
| Warranty: | 1 Year |

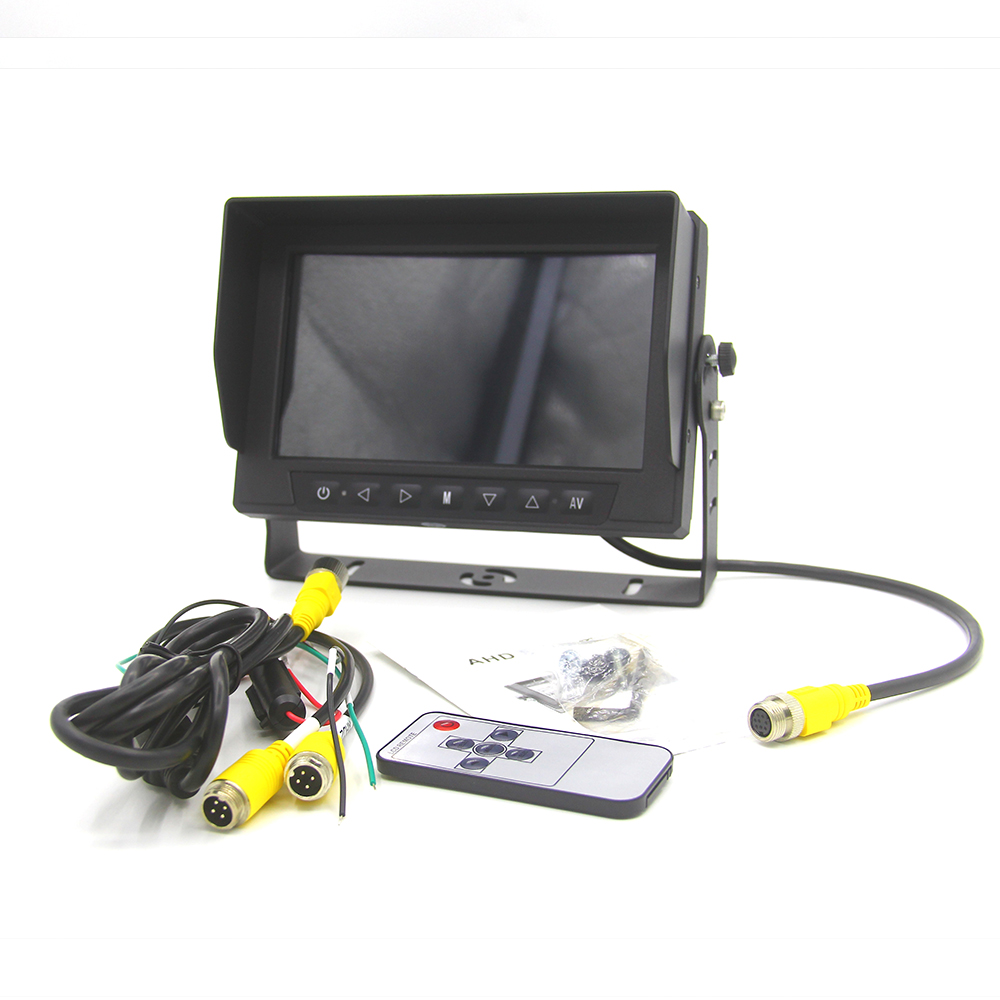

DC12V-36V 7 inch IP69K Waterproof AHD 1080P Car Monitor
FA-703AHD Features:
This 7 inch IP69K Waterproof AHD 1080P Car Monitor with removable sunshade
Mounts to the dashboard with ease
Support 2 camera inputs, and switch to view CH1/CH2 display.
Power Operation Voltage: DC12-24 volts
Suitable for 4WDs, Motorhomes, Horse Trailers, Trucks, Buses & Heavy Machinery etc.
| Car Monitor (FA-703AHD) | |
| Color LCD screen | 7-inch IPS screen, with removable sunshade |
| Resolution | 1024xRGBx600 |
| Aspect ratio | 16:9 Wide Screen |
| Brightness(cd/m2) | 500cd/m2 |
| Video input | 2-way video input(3 Ways optional), Video Compatibility: CVBS/ AHD |
| Picture mode | Single Image Display |
| Color system | PAL/NTSC (AUTO) |
| OSD Language | English, Chinese |
| Speaker | No |
| Dustproof & Waterproof level | IP69K |
| Shock Resistance | 5.9G |
| View Angle | Hor. L(85°) R(85°) Ver. UP(85°) DOWN(85°) |
| Parking Line | Built-in Parking lines adjustment, adjusting according to the vehicle width |
| Working voltage | Input Power: DC12V-36V, Output Power: DC12V |
| Power consumption | 5W |
| Material | Metal |
| Working temperature | -20ºC to +70ºC |
| Storage temperature | -30ºC to +80ºC |
| Built-in light sensor | Adjust the screen brightness automatically |
| Dimensions | 188x127.2x34 mm |
| Others | Built-in lightning protection device; Monitor with reverse polarity protects. Automatically switch to V2 when reversing. |
| Accessories | Remote controller, Power supply cable, User manual, U Shape Bracket |
Giftbox or White box Package
Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
