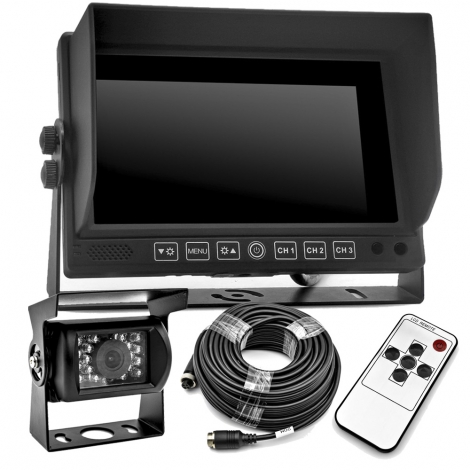

7 Inch AHD Rear-View Trailer Camera System
Name:7 Inch AHD Rear-View Trailer Camera System
Model No.:RVM-7003AHD
Monitor:7 Inch AHD Car Digital Monitor
Camera:AHD 1080P Camera, Night Vision, Waterproof
Cable:20M Extension cable with 4-PIN

Key Features:


DC12V&36V 7 Inch AHD Rear-View Trailer Camera System

RVM-7013AHD Specification

Monitor Specification:
7 inch AHD Car Monitor with IPS Screen
Aspect ratio: 16:9 Wide Screen
High Resolution:1024*600
Back Light luminance: 500cd/m2
3 way AHD video input,3 way trigger
Support AHD/CVBS Camera
Power Supply: Input Power: DC12V-36V, Output Power: DC12V
System: NTSC & PAL (automatically)
OSD Language:English,Simplify Chinese
Built-in Parking lines adjustment, adjusting according to vehicle width
Automatically switch to V2 when reversing
With Removable Sunshade design, With Metal Fan Shape Bracket
Built-in lightning protection device; Monitor with reverse polarity protects;
Built-in Speaker
Material: ABS
View Angle: Hor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)
Storage temperature: -30°C ~80°C
Working temperature:-20°C ~ 70°C
Power consumption: 5W
Size: 180x121x26mm
Accessories: Remote controller, Power supply cable, User manual, Bracket
Connector: 4-Pin Connector


DC12V Truck AHD Camera

1/3" AHD CMOS,1080P,200W,0.01Lux/F1.2,PAL, 120°,DC12V

Waterproof IP68, IR Night Vision

Aluminum alloy shell, outside hanging design

20M extend cable with 4 PIN lock connector





Hits: 【Print】
Pre:7-inch AHD Quad Waterproof Monitor System     Next:7 Inch AHD 1080P Car Camera System

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
